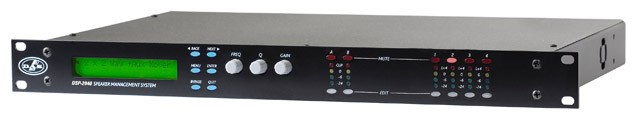

2 In/4Out Fully Configurable DSP

Manufacturer: DAS Audio
Setup via front panel or RS232 PC/Laptop connection
  • 2 inputs and 4 outputs for versatile audio routing options.
  • 9 parametric bands on every output for precise sound tailoring.
  • Crossover filters deliver a steep 48 dB/octave response.
  • Adjustable gain settings on both inputs and outputs enhance control.
  • Operates at 96 kHz for superior bandwidth and dynamic range.
SKU: DSP-2040
Availability: In stock
$5,462.50 incl tax
i h

- 2 inputs and 4 outputs - 9 full bandwidth parametric bands available on every output - Crossover filters on each output offer 48 dB/oct response - Adjustable gain on both inputs and outputs The DSP-2040 offers a 2-In, 4-Out configuration with a wealth of features that make this processor ideal for use with small to medium sized live sound reinforcement projects. The new DSP-2040 operates at 96 kHz to give a bandwidth of over 30 kHz and a dynamic range in excess of 116 dB. Connectors include two female XLR inputs, and four male XLR outputs. The DSP-2040 provides 8 bands of fully parametric equalization on inputs. Further, each output path features gain control, polarity, delay, and up to 9 parametric sections.

Technical Data Frequency Response 20 Hz-20 kHz, +0/-0.50 dB 32 kHz, -3 dB Dynamic Range >116 dB unweighted 20 Hz-20 kHz Distortion (THD) <0.02% @ 1 kHz, +18 dBm AC Requirements 60-250 VAC 50/60 Hz Dimensions (H x W x D) 4.4 x 48.1 x 30 cm 1.75 x 19 x 11.8 in Weight 3.3 kg (7.3 lb)
