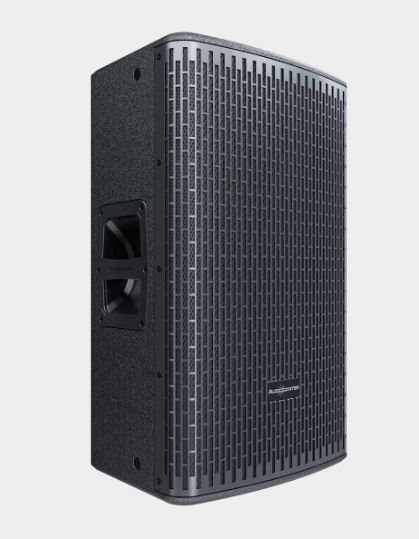

12" Active DSP-controlled full range speaker, 1100w

Manufacturer: Audiocenter
Active Speaker, 12" Full Range
SKU: GT512A
Availability: In stock
$1,564.35 excl tax
i h

The Audiocenter GT512A speaker has two combo inputs (2-way XLR and Mono jack 6.35). CH A input can be switched between balanced line input or microphone. The two audio sources can be internally mixed and output as a balanced output, transmitting the signal to multiple speakers for easy system signal cascading distribution.

A powerful 1100 watt RMS Class-D amplifier and 48kHz sampling DSP, and FIR filters put this speaker at the top of its class for quality and reliability.

The cabinet is constructed of high-quality wood, with an innovative and compact multi-purpose symmetrical cabinet structure CNC machined. This provides clear and accurate sound quality. The base mounting holes are available in 0° or 10° options. According to different installation locations and methods, the cabinet can meet different sound reinforcement installation environments.

Adhering to the principle of standing on the shoulders of giants, Audiocenter integrates top European R&D teams and top European speaker and electronic suppliers in this series.

Specifications



Type

Active DSP-controlled full range loudspeaker

Frequency Response(-10dB)

42Hz-20kHz

Horizontal Coverage

90°/60°

Vertical Coverage

60°/90°

Maximum Calculated SPL/1M (Continuous/Peak)

128dB/134dB

HF Driver

Customized driver, 1.75” voice coil and 1.0”exit

LF Driver

Customized 12” driver, 3.0” voice coil

DSP

Processor

48kHz signal sampling frequency,FIR filtering

Presets

MAIN,LF BOOST,W/SUB

AMPLIFIER

Amplifier Circuitry

Class D

Power (RMS standards)

1100W

Peak Power

2200W

Frequency Response(1W 8Ω 2ch)

20Hz-20kHz(±0.5dB)

Intermodulation Distortion

<0.05%

Total Harmonic Distortion

<0.05%

Cooling System

Cooling with fans, air convection

Protection

DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

Signal Input

Female XLR(Mono jack 6.35)

Signal Output

Male XLR

Power Input

IEC power connector

Working Voltage

100-130V~ or 220-240V~ (±10%,50/60Hz)

Power consumption (1/8 output power)

95W

CABINET



Cabinet Material

CNC machined plywood

Coating

Durable Polyurea Coating

Cabinet Color

Black is the default color. Contact Audiocenter for customization

Grille

Iron mesh

Handles

2 side

Monitor Angle

Symmetrical 45° monitoring Angle

Hanging Hardwares

M8 screw

Pole Mount

Base hole Φ35mm,0° or 10° options

Speaker Dimension (W×H×D)

355x599x349mm

Carton Dimension (W×H×D)

446×688×446mm

Net Weight

21.0kg

Shipping Weight

24.0kg
