  • 16 Channel Repeater Rec. 680Mhz StagePro Module

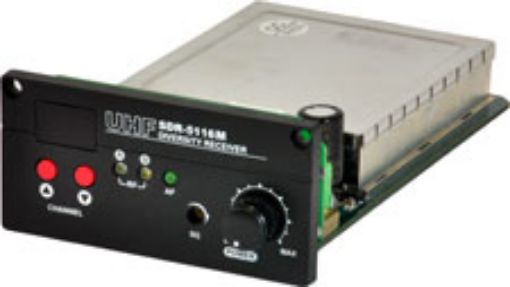

16 Channel Repeater Rec. 680Mhz StagePro Module

Manufacturer: Chiayo
1 review(s) | Add your review
This is the Receiver of the StagePro Repeater pair
  • Helical Filter RF front end for superior signal selectivity and clarity.
  • Advanced IF design for high image and spurious rejection performance.
  • Anti-interference Pilotone circuit enhances audio signal integrity.
  • Auto-scan function simplifies multi-channel setup for optimal performance.
  • 7-segment LED display provides clear channel indication at a glance.
SKU: SDR5116BM
Availability: In stock
$299.00 incl tax
i h

Wireless receiver module for the Stage Pro Slave Speaker. Match to a RP-5016 repeater transmitter and you have a wireless audio link system.

Features

  • Helical Filter RF front end ensures high selectivity.
  • Excellent IF design delivers high image and spurious rejection.
  • Anti-interference Pilotone circuit.
  • RF noise squelch circuit.
  • Auto-scan function searches for the cleanest frequency and simplies multi-channel setup.
  • Squelch control accessible via front panel.
  • Power and volume control switch.
  • UP / DOWN channel selection key.
  • 7-segment LED display channel indicator.
  • Balanced and unbalanced audio output.
  • 20-pin connection for easy installation.

Slot into a Stage Pro Slave speaker or a QR-2000N frame and it can receive the wireless audio signal from the repeater transmitter from up to about 80 metres away (250 feet).

ModelSDR-5116M
Frequency RangeUHF 600-900MHz
Switching Bandwidth20MHz
Switchable Frequencies16
Display Screen7-segment LED
OscillationPLL Synthesized
Frequency Stability±0.005%
Frequency ScanYes
Receiving MethodDiversity
2-Way synchronizationNo
Sensitivity-100dBm at S/N ratio > 80dB
Image Rejection> 85dB
Spurious Rejection> 85dB
S/N Ratio> 110dB
Peak Deviation±40KHz
T.H.D.< 0.5%
Audio OutputsUnbalanced: +4dBm (1.25V)
Balanced: +10dBm (2.5V)
SquelchRF noise squelch & Pilotone squelch
Power SupplyDC 12V
Weight (g)113
Dimensions (mm)73*138*36
Matched TransmitterSQ-5016,SQ-1016(V),SM-5016,SM-1016
Matched AmplifierStage Pro,Stage Man,Focus 505,Focus 500
Matched ReceiverQR-2000N
