2 channel x 25W amplifier, wall-panel format

Manufacturer: DAS Audio

1 review(s) | Add your review

Aux Line, micro-SD card, USB and BlueTooth inputs

Compact wall amplifier with 2-channel output for versatile use.
Supports micro-SD, USB, local line input, and Bluetooth connectivity.
High-efficiency Class-D amplifier delivers 2 x 25 W power output.
Includes remote control for convenient operation and source selection.
Designed for easy installation with included 86 x 86 mm electrical box.

SKU: INTEGRAL-WA2

Availability: In stock

$295.00 excl tax

Qty:

i h

Overview
Specs
Reviews
Contact Us

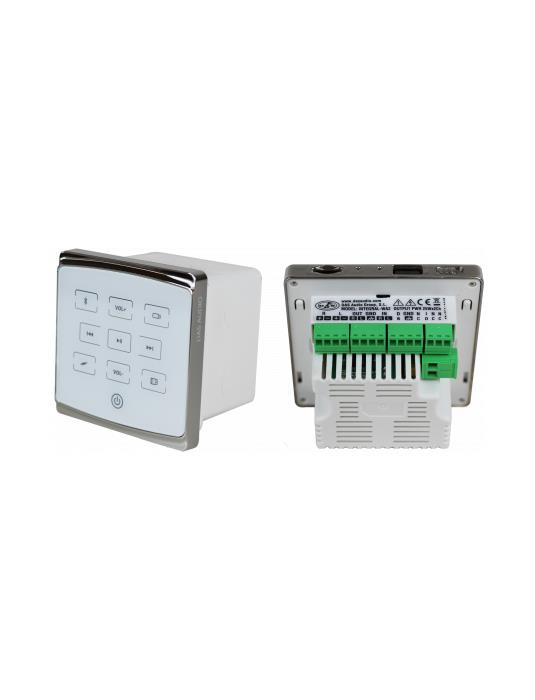

INTEGRAL-WA2 is a 2-channel compact wall amplifier equipped with micro-SD card, USB, local line input and Bluetooth. Specially designed to be installed in the walls of commercial / educational facilities or domestic use.

It uses a high-efficiency class-D amplifier for a maximum power output of 2 x 25 W, at 4ohm. The buttons at the front panel allow volume control, input source selection, etc. A remote control is also included with the unit, as well, an electrical box of 86 x 86 mm.

Features

2 channel amplifier, wall-panel format
4 independent input sources
25 W per channel @ 4 ohms
High Efficiency Class D topology
Input Sources: Auxiliary Line, micro-SD card, USB and BlueTooth
Universal Power Supply
86 x 86 electrical box included for easy installation
Remote control included

Output Power Ratings
Power 8 Ohms, Both Channels Driven	2 x 12.5 W
Power 4 Ohms, Both Channels Driven	2 x 25 W
Electronics and Connectors
Amplifier Channels	2
Output Circuitry	Class D
Frequency Response	20 Hz – 20 kHz (+0 -0.5 dB)
Sensitivity	1.25 V (+4 dBu)
Voltage gain	18 dB
Controls	Push Buttons & Remote
Amplifier Protections	Short Circuit, DC Output
Audio Signal Input Connector	Terminal Block
Speaker Output Connector	Terminal Block
Current Draw 230 V / 115 V	0.3 A / 0.6 A
Dimensions-Weight
Dimensions ( H x W x D )	86 x 86 x 36 mm 3,4 x 3,4 x 1,4 in
Net Weight	0,1 kg ( 0,1 lb )
