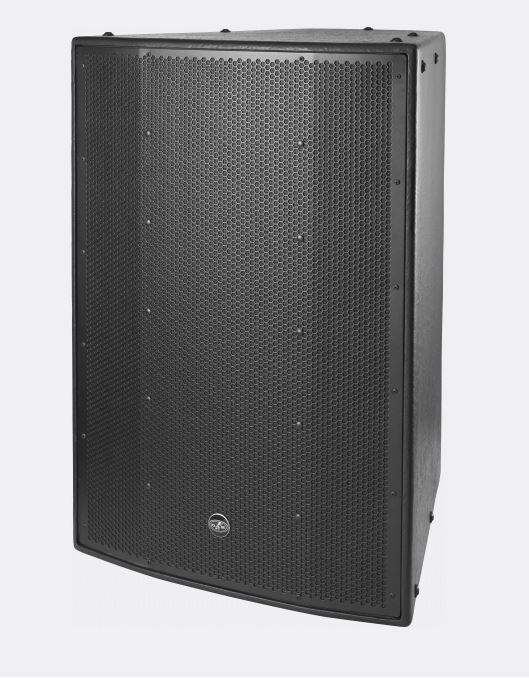

2 way longthrow stadium speaker system

Manufacturer: DAS Audio
Horn Loaded 12", 400w, tight 40º x 30º, Military Gray/Fiberg
SKU: HQ-112.43DX
Availability: In stock
Call for pricing
i h
Product Files

The HQ-112.43 is offered in two exposure ratings-“covered exposure” (CX) for applications where cabinets are covered or protected, and “direct exposure” (DX) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex coating on both the exterior and interior surfaces. The DX versions augment the protection rating by employing a fiberglass exterior and a gel coat sealed interior. Both versions are rated IP54.

Features

Two-way long-throw system
DX finish (Fiberglass) for direct exposure
Horn loaded 12″ low frequency loudspeaker
M-78N neodymium compression driver
Selectable passive/biamplified operating modes
Tight 40º x 30º coverage angles
Rotatable horns
Stainless steel rigging kit

Applications

Professional installation systems
Arenas and large sports facilities
Stadiums
Outdoor applications



Performance
Frequency Range (-10 dB)80 Hz – 18 kHz
Horizontal Coverage (-6 dB)40º
Vertical Coverage30º
Nominal ImpedancePassive: 8 ohms
Nominal Impedance MF8 ohms
Nominal Impedance HF8 ohms
RMS Power HandlingPassive: 400 W
RMS Power Handling HF150 W
RMS Power Handling MF400 W
Peak Power HandlingPassive: 1600 W
Peak Power Handling MF1600 W
Peak Power Handling HF400 W
On-axis Sensitivity 1W/1 mPassive: 111 dB SPL
On-axis Sensitivity 1W/1 m MF111 dB SPL
On-axis Sensitivity 1W/1 m HF112 dB SPL
Maximum Peak SPL at 1 mPassive: 143 dB
Maximum Peak SPL at 1 m MF143 dB
Maximum Peak SPL at 1 m HF140 dB
Recommended AmplifierDX-100I-230
DX-100I-115
DX-80I-230
DX-80I-115
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input Connector1 x speakON NL4
Covered Barrier Strip Terminals
Audio Output Connector1 x speakON NL4
Covered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishFiberglass
ColorBlack
Depth720 mm (28,4 in)
Dimensions ( H x W x D )990 x 685 x 720 mm
39,0 x 27,0 x 28,4 in
Net Weight62,5 kg ( 137,8 lb )
Components
LF Driver12HQN
HF DriverM-78N
Horn/WaveguideBCH-4030-7037
BCM-4030-7037
Shipping
Carton Dimensions ( H x W x D )1.070 x 650 x 745 mm
42,1 x 25,6 x 29,3 in
Shipping Weight67,5 kg ( 148,8 lb )
