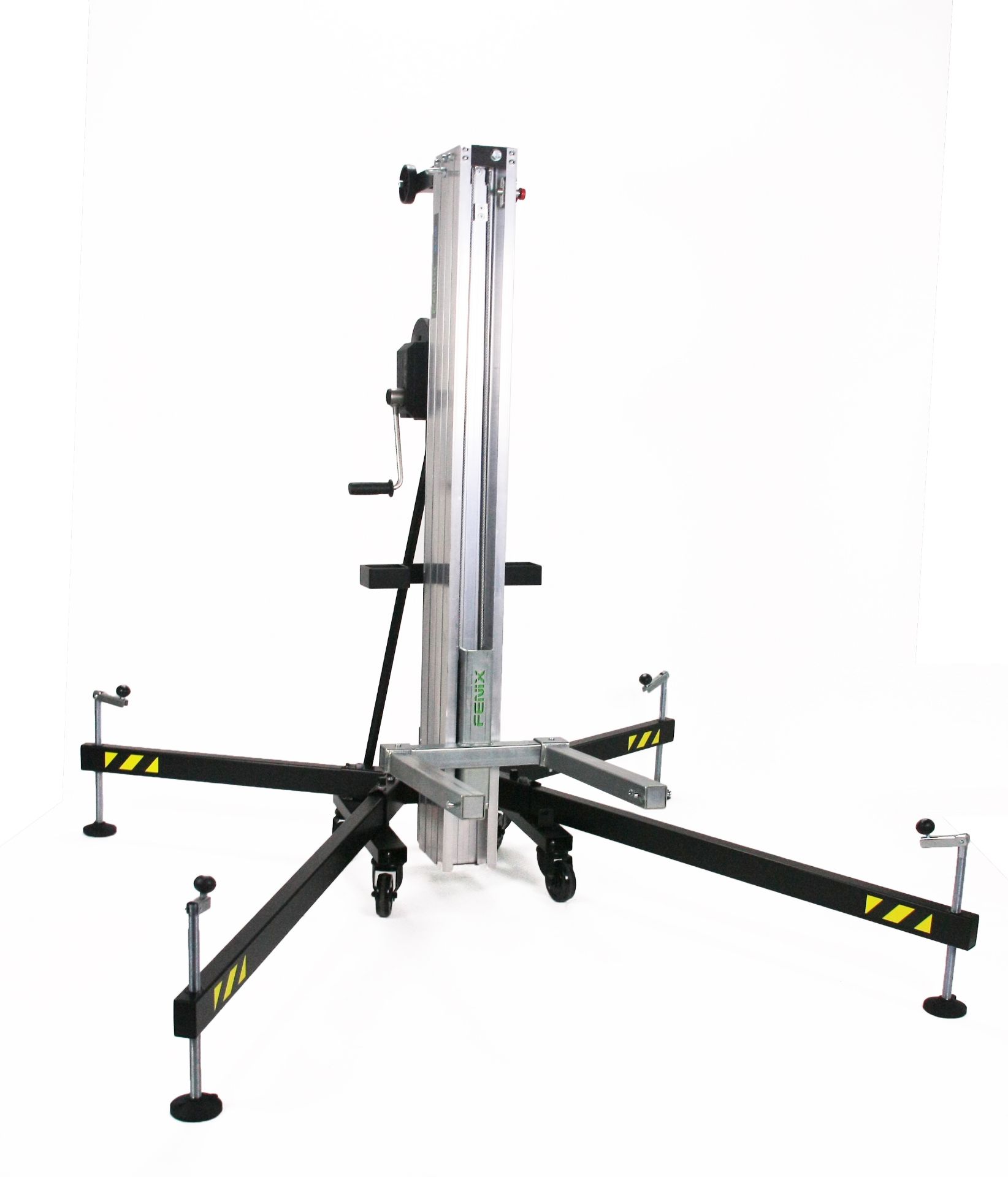

Aluminium front loading tower. Loads from the ground

AT-05

Front loading lifting tower. AT Series allows you to lift loads from the floor, reducing user effort.

Uses: The AT Series is perfect to lift line array systems, can also raise trussing and LED screens.

- All AT towers lift the load from the floor.
- Made of aluminium.
- All AT towers are available in silver (ref. AT-05) and black colour (ref. AT-05B).

The automatic leg locking system allows the outriggers to anchor easily in the correct place, doing away with old and uncomfortable safety pin rings.
Safety pins stop the load from falling down. You can select different tower heights safely by raising the bars equally, this distributes the load evenly from the main bar to the last bar. Ultimately this prolongs the towers lifetime and increases its stability.
The location of the bubble level at the base helps you to stabilise the tower easily and accurately

A ‘Ring’ is included on the AT and HERCULES Series towers to enable additional support cables or straps to be tied directly to the tower, increasing tower safety.
Included on the AT and HERCULES Series towers to move the tower vertically and horizontally. This also protects the cable and the winch during transportation.
Included on the AT and HERCULES Series towers to allow transporting the tower horizontally.
Winch: Our winches are manufactured by industry leading companies. They are resistant and durable as well as oversized for additional safety and better cable pull.
Safety pendulum: All frontal loading lift towers include an internal safety system that automatically blocks the tower if a sudden drop is detected, e.g. if the cable broke or was cut.
Safety pins: Allow selecting different tower heights safely by raising the bars equally.

Maximum height: 5.40m

Height folded: 1.76m

Maximum load: 250kg

Minimum charge: 25kg

Material: Aluminium AL Si 6082 / T6

Workspace: 1.66 x 1.72m

Closed base area: 0.48 x 0.48m

Weight: 96Kg

Winch: AL-KO 901 Plus 900kg

Cable: Galvanized steel under EN 12385-4.

Maximum cable load: 2,000kg

Cable twisting resistance : 1,770N/mm²

Cable diameter: 6mm

Cable composition: 7x19+0

Security system: Inner pendulum and external trigger in sections.

Leg attachment: Safety pins

Bubble level: to vertically adjust the tower.
