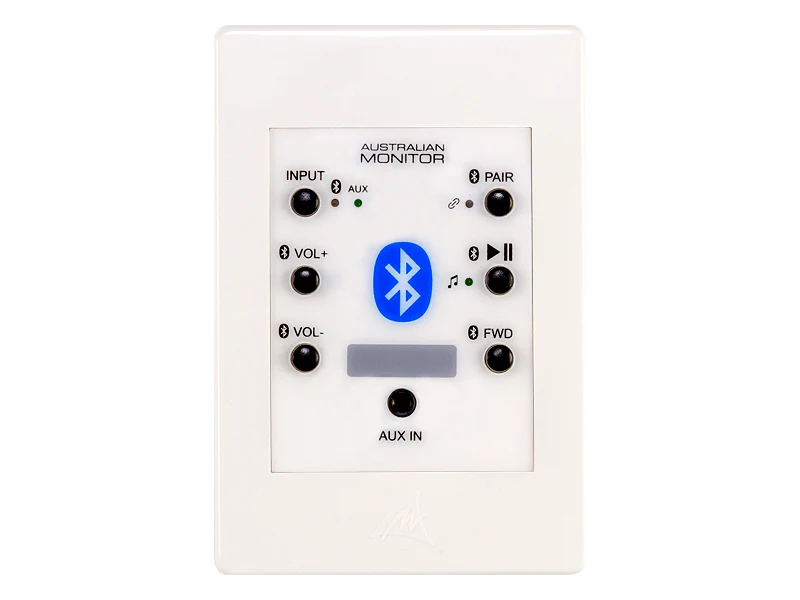

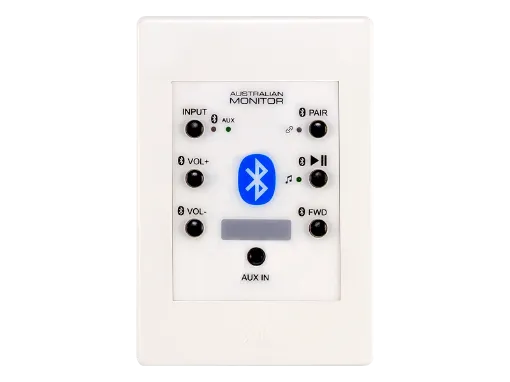

Bluetooth Wall Panel Receiver with Assignable Name

The WPBT is a programmable Bluetooth^® audio receiver and auxiliary input wall panel. Featuring Bluetooth pairing and media controls as well as a source selector.

Audio can be configured to output either stereo or mono balanced audio which can be integrated into any audio system.

The WPBT can be programmed via a USB-C connector and Bluetooth PC Control Software. The software allows the customisation of broadcast name, PIN number, security features and output mode.

An optional WP-BREAKOUT box can provide power to the WPBT and convert the audio to unbalanced audio.

Features

• Bluetooth^® v5.1 Audio Receiver
• Auxiliary 3.5mm Input Socket
• Programmable name, PIN and security features via Bluetooth PC Control Software
• USB-C programming connector
• Dedicated Bluetooth^® media controls
• Stereo or mono balanced audio output
• Euroblock cable termination
• Customisable colour scheme using HPM^® VIVO™ cover plates
• Also available in Black, WPBT-B

WP-BREAKOUT ACCESSORY

Pair the WPBT with the optional WP-BREAKOUT to easily provide power and break out the audio from up to two wall panels.

15V is provided to the WPBT wall panels and the balanced audio is converted into unbalanced audio for connection into any audio system.

Multiple WP-BREAKOUT units can be daisy chained from one power supply for a minimal installation footprint.
