Digital Player Module for Portable PA's MP3 USB/SD

Manufacturer: Chiayo
Play mp3 files via USB or SD through Portable PA System
  • Reads MP3 files from USB drives and SD cards seamlessly.
  • LCD display shows track information like name and play time.
  • Multiple repeat and play modes for versatile listening options.
  • Compact design makes it easy to integrate into any setup.
  • Includes remote control for effortless operation and settings adjustment.
SKU: DP-500M
Availability: In stock
$129.00 incl tax
i h

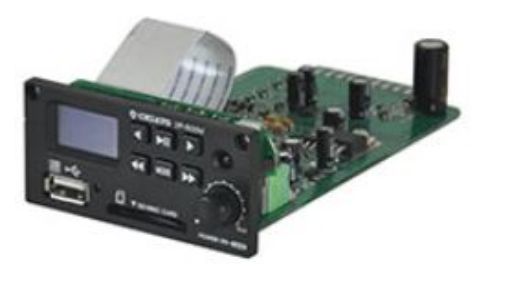

DP-500M MP3 player module for StagePro and focus Portable PA systems.

Features

  • Able to read MP3 files in the USB and SD card.
  • LCD displays track information, e.g. file number, name, play time and modes.
  • Different repeat and play modes for selection.
  • Far more compact in size than traditional modules.
  • Remote control for more setting convenience.
  • Individual power/volume control on the panel.

Model DP-500M Slot-in digital player module for Stage Pro and Focus 505 - For Focus 505 installation we need to install an MB-50 frame to accommodate it, but that also allows installation of the Bluetooth module and additional SDR5116 wireless mic receiver modules too and is not a hard job.



Specifications
Model DP-500M
Audio output 0dB±1.5dB (1KHz Sine Wave,0dB MP3)
Frequency response 50Hz-20KHz±3dB
Power supply DC12V,75mA
File format MP3
RecordableNIL
Storage system format FAT,FAT32
Acceptable storage device USB(1.0,2.0)
SD(64MB-2GB)
SDHC(4GB-32GB)
Dimensions (mm) 74*36*138
Weight (g) 78
Matched AmplifierVictory 2000,Challenger 1000,Stage Pro,Stage Man,Focus 505,Focus 500
Matched ReceiverQR-2000N
