Focus 505 16 Channel UHF Receiver Module SU650

Manufacturer: Chiayo

1 review(s) | Add your review

UHF 16-freq wireless receiver module

High image and spurious rejection for clear sound quality.
Anti-interference Pilotone circuit ensures stable wireless performance.
RF noise squelch circuit minimizes unwanted audio disruptions.
Unbalanced audio output for easy integration with PA systems.
Includes installation by a technician for hassle-free setup.

SKU: SDR500M-SU650

Availability: In stock

$199.00 excl tax

Qty:

i h

Overview
Specs
Reviews
Contact Us

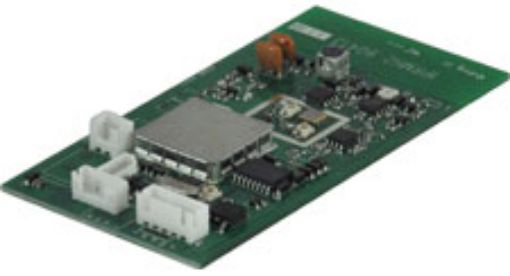

Wireless Microphone Receiver module for Focus 505 Portable PA system. This needs to be fitted by our technician, but the price includes installation. the Focus U and UCD models come with one already fitted and you can add one more which means you can run two wireless microphones simultaneously.

Features

Excellent IF design delivers high image and spurious rejection.
Anti-interference Pilotone circuit.
RF noise squelch circuit.
Unbalanced audio output.

Specifications

Model	SDR-500m
Frequency Range	UHF 600-900MHz
Switching Bandwidth	20MHz
Switchable Frequencies	16
Display Screen	LED
Oscillation	PLL Synthesized
Frequency Stability	±0.005%
Frequency Scan	No
Receiving Method	Non-Diversity
2-Way synchronization	No
Sensitivity	-95dBm at S/N ratio > 75dB
Image Rejection	> 85dB
Spurious Rejection	> 85dB
S/N Ratio	> 110dB
Peak Deviation	±40KHz
T.H.D.	< 0.5%
Audio Outputs	Unbalanced: +7dBm (1.8V)
Squelch	RF noise squelch & Pilotone squelch
Power Supply	DC 12V
Weight (g)	33
Dimensions (mm)	5511016.8
Matched Transmitter	SQ-5016,SQ-1016(V),SM-5016,SM-1016
Matched Amplifier	Adventure 800,Focus 505,Focus 500,Smart 300
