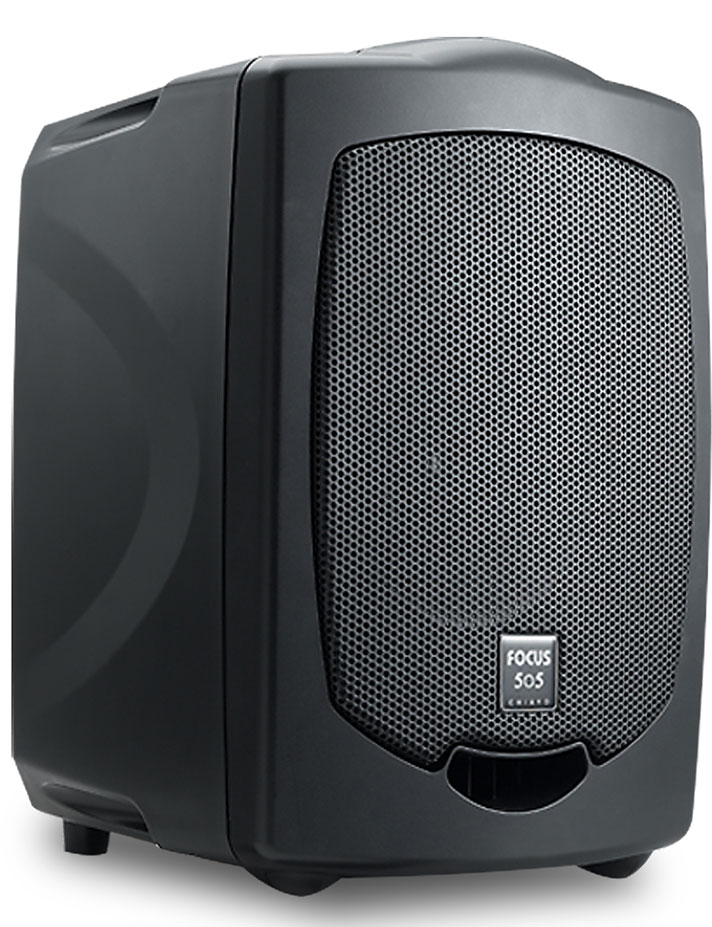

Focus 505 Portable Powered Speaker, 30w

Manufacturer: Chiayo
1 review(s) | Add your review
Active Slave Speaker, Portable PA, Rechargeable Battery
  • High efficiency Class D amplifier delivers 30W RMS audio output.
  • Portable design with built-in rechargeable battery for easy transport.
  • Exceptional sound quality with frequency response from 50Hz to 20kHz.
  • Smart charging circuit with LED indicator for convenience.
  • Compatible with tripod stands and wall mounts for versatile use.
SKU: FOCUS505PA
Availability: In stock
$493.35 incl tax
i h

Active 30w (50w) Focus 505 Speaker with aux input. Operates via mains and/or built-in rechargeable batteries. This is a portable powered extension speaker to match the Focus portable sound systems, or anything else with a line level output. The sound quality is superb with hi-fi characteristics 50Hz - 20kHz and with the very low distortion figures we can confidently say these are the best sounding portable PA systems in their class.

General Features
  • High efficiency Class D amplifier produces 30W RMS audio output (maximum music output 50W)
  • All-In-One! Easy to operate in both indoors and outdoors.
  • Rechargeable Lead-Acid battery eliminates all cables so you can take it anywhere!
  • Smart charging circuit with LED indicator.
  • Speaker system: 6 1/2" full range.
  • Audio inputs:  Aux in
  • Audio outputs: N/A
  • Tripod stand mountable with ST-40/Wall mountable with SR-40.
  • Optional carrying bag (SB-21).
  • Portable amplifier: PA-505R
  • Focus speaker: SP-505



It's a powered speaker with battery and power adaptor. Can go on a stand, in a bag, and links to the other members of the Focus family or any other line level/Aux sound source. Perfect when you need battery powered sound monitoring out in the field. If you want a wireless microphone too, or CD player then look at the Focus 505U or UCD models instead.

Specifications
ModelFocus 505
Output power50W, 30W(RMS) 4Ω load (class-D)
Speaker system6 ½" full range
Audio inputAux in (6.3mm Jack)
Audio outputNo
T.H.D.< 0.5%
Freq. response50Hz-20KHz ± 3dB
Antenna
Power supply100-240V AC / 15V DC, 4.3A
Battery typeLead-Acid
Battery spec12V, 2.9A
Battery Q'ty1
Operating time5-6 hrs in music, 10-12 hrs in speech
Charging timeabout 4 hrs
Dimension (mm)313(H) x 220(W) x 215(D)
Weight (kg)4.8

PatentTaiwan, China, USA, Germany
ApprovalCE, RoHS, FCC, ICID
