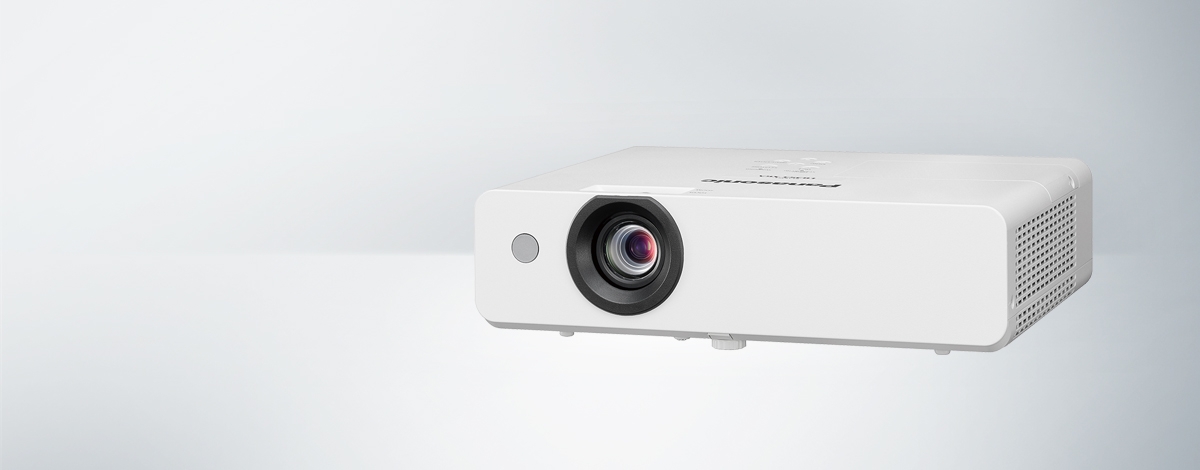

Panasonic WXGA, 3600Lu, widescreen portable projector

Panasonic data projector for portable and fixed installation for conference room, meetings, boardroom etc. Light, compact and ultra quiet operation. wireless connection possible via the optional adapter.

In addition to JPEG/BMP image and text files, PDF files can be projected by simply inserting a USB memory device containing the data into the USB memory port. Now you can start your presentation without having to connect to a computer.



Ease Wireless Projection by Optional Module (PT-WML100E - see below)

Simply inserting the optional ET-WML100 Wireless Module into the USB port on the projector enables easy wireless projection from Windows PCs, iOS devices, or Android devices on which the proper freeware is installed.

Presenter Light Ver.1.0 for Windows® PCs

Pictures, videos, and any documents including PDF files/Power Point files, whatever are displayed on the PC screen can be projected.

The images from up to four PCs can be projected simultaneously.

VueMagic™ Pro* for iOS/Android Devices

Pictures, some documents including PDF files can be projected.

Live camera mode / Annotate mode can be used.



The images from up to four devices can be projected simultaneously.



In addition to JPEG/BMP image and text files, PDF files can be projected by simply inserting a USB memory device containing the data into the USB memory port. Now you can start your presentation without having to connect to a computer.

USB Display Function for Easy Projection Using a USB Cable

USB Display outputs images and sounds from the computer without the need to install any software.

Simply connect* to the USB port with a single USB cable and start your presentation.

* The first time a USB cable is connected, a USB driver must be installed.



Equipped with an HDMI Input Terminal and Abundant Interfaces



Extensive interfaces include an HDMI input terminal, 2 sets of computer (RGB) input terminals, a monitor (RGB) output terminal,

a wired LAN terminal, and a serial (RS-232C) terminal for external control.

These features support a wide range of system architectures for portable or ceiling-mounted use.



A Wide Variety of Functions for Easy Setup



Auto Input Signal Search



The Auto Input Signal Search function automatically detects the input signal and selects the input channel based on the signal.

This function lets you start a presentation without any complicated setup required.



Real-Time Keystone Correction



With Real-Time Keystone Correction, the projector automatically senses if you adjust its angle (in the vertical direction) during operation and instantly makes whatever keystone correction is necessary for optimal viewing.



Color-board and Blackboard (Green) modes



Color-board and Blackboard (Green) modes adjust the colors to provide

high-quality projection possible in rooms that don’t have a screen.



10-Watt Speaker Enables Audio Playback Directly from the Projector



These portable projectors feature high-output 10-watt speaker that produces a high sound volume without requiring external speakers.



Direct Power Off right after use

Projector identification system for remote control allocation of up to six projectors

Built-in closed caption decoder.

Excellent Performance in a Compact Body

High Brightness and High Contrast  in a Lightweight Body



Daylight View Lite

The Daylight View Lite function can be activated from the remote control for easy and comfortable viewing during presentations and lectures in a bright room.



Quiet 28-dB* Design Helps to Hold Viewers´Attention

The noise level is as low as 28 dB*. This helps your audience to keep their attention on the discussion or on the screen images during quiet scenes.



* Lamp control: Eco2



Ease of Installation

Corner Keystone Correction Enables Angeld Projection

All you need to do is designate for points as the corner of the projected image, and this function easily carries out horizontal and vertical keystone correction.



Easy Remote Monitoring and Control over a LAN

Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status.In addition, Multi Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.The wired LAN terminal is compatible with PJLink™ (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.



Easy Lamp and Air Filter Replacement Simplifies Maintenance

For easier maintenance, you can replace the lamp from the top and the air filter from the side, even after the projector is installed on the ceiling. This eliminates the need to detach the projector from its mounting bracket in ceiling-mounted applications.
