Portable Sound System / Apex Pro BT PA System

Manufacturer: Chiayo
Portable Sound System, Battery/Mains, Modular, ClassD
  • Powerful 500W output suits large events with 500-1000 attendees.
  • Integrated Bluetooth for seamless music streaming from devices.
  • Built-in storage for up to 4 wireless microphone transmitters.
  • 2-way speaker system delivers exceptional sound quality and clarity.
  • Portable design with retractable handle and durable wheels for easy transport.
SKU: APEX-PRO
Availability: Low stock
$2,869.25 incl tax
i h
Product Files

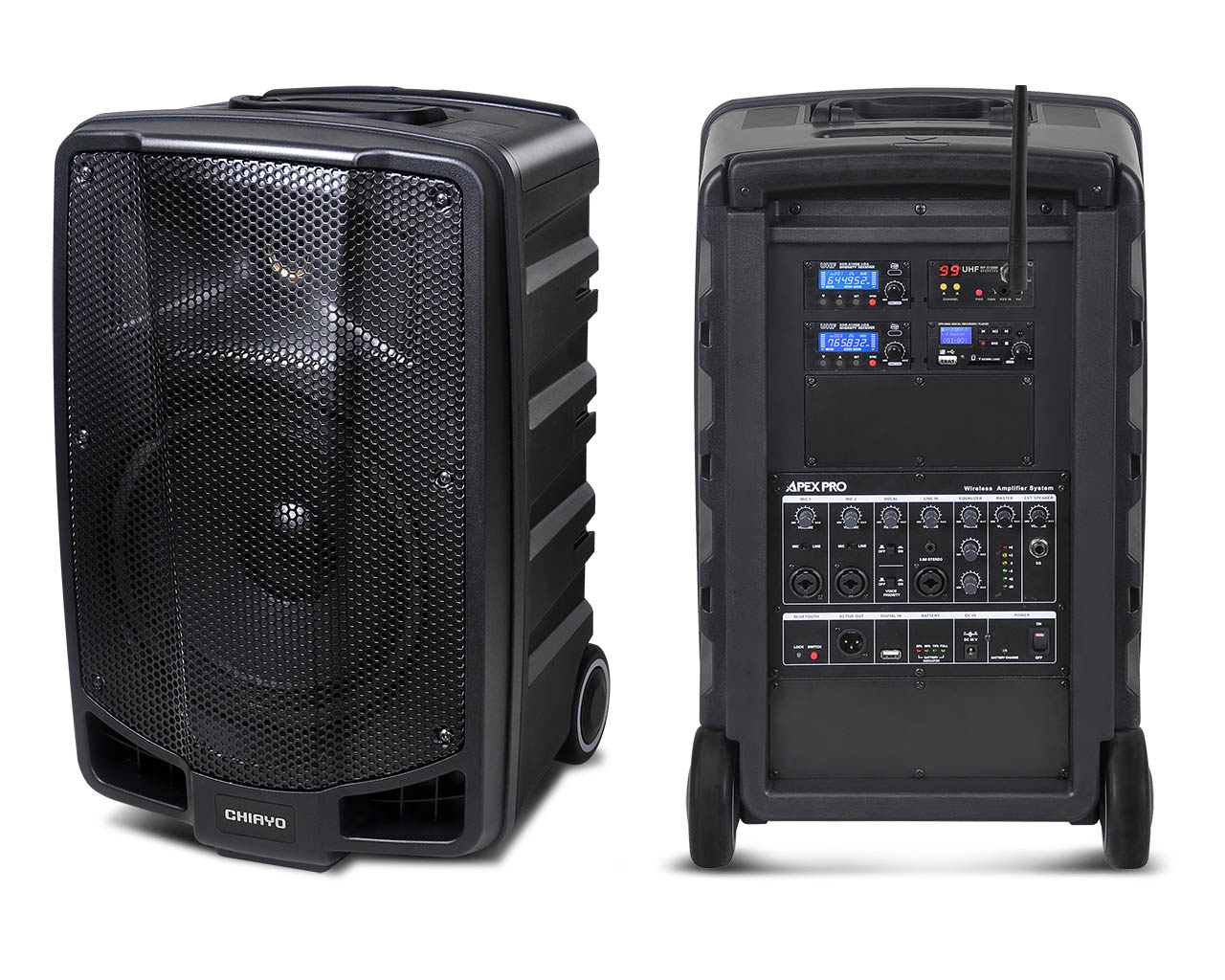

The APEX PRO multifunctional wireless mixing amplifier combines wireless microphones, MP3 recording and playback, Bluetooth, relay transmission, powerful built-in batteries, and mixing amplification functions to meet the needs of many varied applications. Its retractable handle and 4-inch shock-absorbing wheels make it portable, ensuring you can use it for street performances, large events, school or sports events, gatherings, or stage performances.

Base model comes with Bluetooth installed, but no wireless receivers or microphones included. Up to four wireless mic receivers can be added as required.



  • Wireless Connectivity, Flexible Use

    Whether used as a teaching amplifier, wireless conference amplifier, or event amplifier, the APEX PRO excels. It can connect up to six microphones (4 wireless and 2 cabled) and utilises the CHIAYO receiver modules, which auto-scans for the cleanest wireless mic channels and synchronizes frequencies bidirectionally, making it easy to operate, even for beginners. In corporate meetings and training sessions, this amplifier allows multiple speakers to speak freely without worrying about frequent microphone switches, thus improving meeting efficiency. This flexible connectivity is also ideal for religious activities, ensuring every participant can hear clear explanations and music, and also in sports field and outdoor situations.

  • Powerful Sound, Wide Coverage

    Powerful Sound, Wide Coverage

    With dual 250W Class-D amplifiers driving 10-inch bass and 1-inch treble speakers, the APEX PRO can easily cover large venues of 500 to 1000 people, ensuring high-quality sound in every corner. Whether for street performances or band gigs, the APEX PRO ensures your sound reaches the entire audience. As a street performer, its multifunction mixing and wireless microphone capabilities enhance your performance. In cultural events, its high sound quality allows every detail to be heard, elevating the professionalism of the event.

  • Portable and Convenient

    Portable and Convenient

    The hidden storage compartment accommodates four wireless microphones, a power supply, and power cables, keeping the equipment organized. Additionally, the two-stage retractable handle and large PE shock-absorbing wheels, along with the built-in high-capacity battery, ensure the APEX PRO can be easily transported and used anywhere. Whether for teaching, meetings, or events, this wireless multifunction amplifier is your reliable assistant. In commercial exhibitions and trade shows, this device provides stable audio support, making your displays more attractive.

  • Flexible Expansion, Customizable

    Flexible Expansion, Customizable

    The APEX PRO allows flexible expansion of multimedia functions to meet various application needs, such as wireless microphone receiver modules, MP3 recording and playback modules, Bluetooth receiver modules, and relay transmission modules. You can also connect other active and passive speakers to extend the amplification range, ensuring seamless audio coverage. The APEX PRO is more than an amplifier; it's a comprehensive audio solution, providing professional sound quality for family gatherings, private parties, exhibitions, and product launches. Get the APEX PRO now and make every performance and speech impactful.



Specifications
Model

APEX PRO

Onboard Class D amplifier

Dual 240W Class-D power amplifiers

Maximum Output Power

Built in 2-way 240 watt speaker system
240 watt active output for external 4~8ohm speaker

Speaker system

10" LF, 1" HF and crossover

Sensitivity

Maximum 110 dB

T.H.D.

< 0.5%

Freq. response

50Hz-20KHz±3dB

Audio Inputs

MIC/LINE in x 2 (6.3mm/XLR COMBO)
LINE IN x 2 (6.3mm/XLR COMBO, 3.5mm)
Digital in (USB 2.0)
Up to 4 wireless microphones

Audio Output

ACTIVE OUT (XLR)

External speaker

8Ω (6.3mm), with volume control

Controls

EQUALIZER,REVERB & VOICE PRIORITY on wired/wireless mics

Audio meter indicator

6 LED indicators

Power supply

Input: 100-240V AC / 30-32V DC, 4A

Battery type

Lead-Acid

Lithium

Battery spec

12V, 5A

29.4V, 7.8A

Battery Q'ty

2

1

Battery Indicator

4 LED indicators

Operating time

5-6 hrs in music, >10 hrs in speech

8-10hrs in music, >12 hrs in speech

Charging time

about 6 hrs

about 8hrs

Storage

Handheld x 4 pcs or Handheld x 2 pcs + Beltpack x 2pcs, and a switching power supply

Dimension (mm)

550(H) x 360(W) x 340(D)

Weight (kg)

18.7

15.7



Features

  • Dual 250W Class-D power amplifiers built in
  • 10” woofer and 1” tweeter + crossover
  • 250W active output for external 4~8Ω speaker.
  • Unique optional combination
    SLOT 1: Receiver (SDR-8200/8100M IrDA/DWR-5410M) or MP3 (DPR-500m) recorder module.
    SLOT 2: Repeater (RP-5100M), receiver (SDR-8200/8100M IrDA/DWR-5410M) or MP3 (DPR-500m) module.
    SLOT 3: Receiver (SDR-8200/8100M IrDA/DWR-5410M) or MP3 (DPR-500m) recorder module.
    SLOT 4: Receiver (SDR-8200/8100M IrDA/DWR-5410M) or MP3 (DPR-500m) recorder module.
    SLOT 5: Module bracket (MB-50) for receiver (SDR-8200/8100M IrDA/DWR-5410M) and MP3 (DPR-500m) modules.
  • Two XLR/6.3mm combo jack connectors for microphone and line inputs.
  • LINE IN (XLR/6.3mm combo & 3.5mm jacks).
  • USB 2.0 jack for computer audio
  • ACTIVE OUT (XLR jack) for audio linking
  • SPEAKER OUT (6.3mm jack) for an external 4-8Ω passive speaker with volume control.
  • 6-step LED audio meter indicator.
  • 4-step LED battery indicator and charging LED.
  • Storage compartment for 4 transmitters and a switching power supply.
  • Integrated retractable handle and big TPR Wear-resistant wheels for easy portability.
