2-channel Amplifier, 450 WRMS @ 4 Ohms, 2U

1 review(s) | Add your review

Affordable quality powering solution for diverse sound reinforcement applications.
Rugged 2 unit all-steel chassis ensures structural durability and reliability.
Low-noise fans provide quiet and efficient cooling during operation.
Flexible operational modes: bridge, stereo, or parallel for varied needs.
Comes with SpeakON output connectors for secure speaker connections.

SKU: PA-900

Availability: In stock

$1,299.00 excl tax

Qty:

i h

Overview
Specs
Reviews
Contact Us

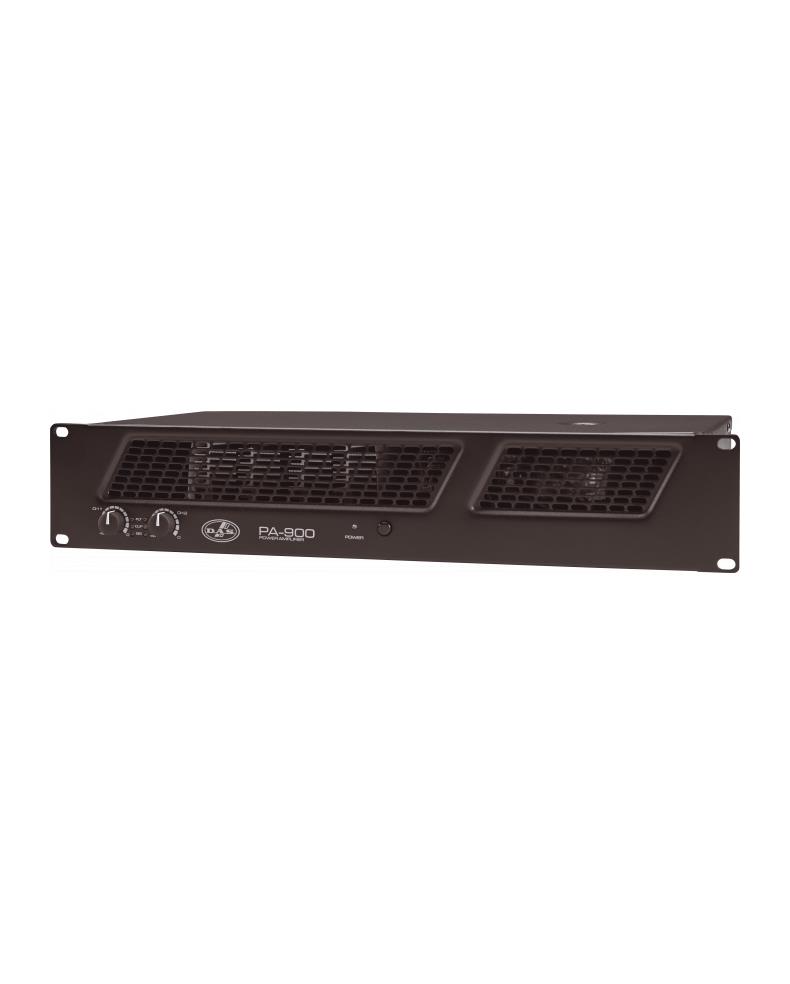

PA-900 Power amplifier - designed and built to provide an affordable, quality powering solution. The wide range of models makes the series ideal for both installed or mobile sound reinforcement applications.

The amplifiers incorporate a rugged 2 unit all-steel chassis ensuring structural rigidity. The low-noise fans offer both quiet and cool operation. The amplifier incorporates rear located switches which permit, operational mode selection (bridge, stereo or parallel) and input sensitivity selection.

Features

Input Sensitivity Selector
450 W x 450 W at 4 Ω
Stereo/Bridged/Parallel Operation
SpeakON output connectors
Clip, protection and signal present LED indicators

Applications

Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations

Download Brochure Here

DAS Audio PA-900 amplifier specs

Output Power Ratings
Power 8 Ohms, Both Channels Driven	2 x 350 W
Power 8 Ohms Bridged	900 W
Power 4 Ohms, Both Channels Driven	2 x 450 W
Electronics and Connectors
Amplifier Channels	2
Frequency Response	20 Hz – 20 kHz, +0 – 1 dB
Total Harmonic Distortion	<0.5% , 20 Hz - 20 kHz
Signal to Noise Ratio	> 100 dB @ 20 Hz – 20 kZ
Voltage gain	31 dB
Damping Factor	> 200 @ 10 Hz – 400 Hz
Controls	Power On/Off, Gain Pots
Cooling	Internal heat sinks with forced air: Fan cooled
Amplifier Protections	Protection against short circuits, no-load, on/off muting, RF interference.
LED Indicators	Power, Protection, Signal, Clip
Audio Signal Input Connector	2 x Female XLR
Audio Signal Loop Thru Connector	2 x Male XLR
Speaker Output Connector	2 x speakON
AC Input Connector	IEC
Operating Range	180-250 VAC
Current Draw 230 V	4.5 A
Dimensions-Weight
Dimensions ( H x W x D )	88 x 482 x 227 mm
Net Weight	12. kg
Shipping
Carton Dimensions ( H x W x D )	160 x 580 x 540 mm
Shipping Weight	13.0 kg
