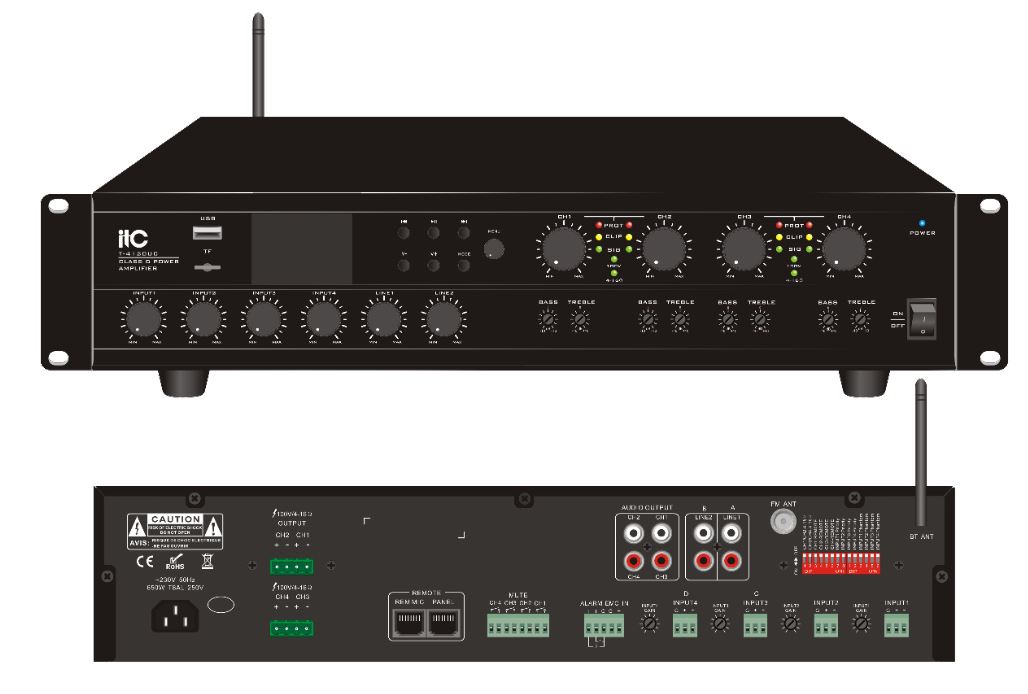

4 channel x 120w matrix amplifier, LCD

Manufacturer: ITC
Touchscreen, 4 x 120w 4ohm / 100V
  • 4-channel outputs with independent bass and treble control for versatility.
  • Built-in Bluetooth and USB media player for seamless audio streaming.
  • Supports remote microphone stations for multi-zone audio control.
  • OLED screen for easy matrix setup and function adjustments.
  • High-performance 120W digital amplifier with multiple input options available.
SKU: T-4120UC
Availability: Low stock
$2,294.25 incl tax
i h

4-channel x 120w matrix amplifier for high-quality audio reinforcement equipment at affordable prices.
The UC series amplifiers provide 4ohm and 100V line outputs, and offer and multiple useful features, including Bluetooth receiver and USB media player, and each output channel has separate bass and treble control.
Suitable for clubs and bars, stadiums, shopping centers and other venues and requirements for high quality, multi-channel power amplifiers.
Matrix setup adjustable via the OLED screen and function buttons.

A compatible multi-zone paging desk microphone T-214B, and wall-panel volume control T-651 add to the fun. These can be connected by CAT5e and powered by the host amplifier when the cable run is under 100m.

Features

  • 120W constant impedance/voltage high performance digital amplifier (4-16R/100V) with 4 channel outputs.
  • Built-in MP3 recording function.
  • 6-channel audio sources can be input to each channel output through matrix configuration.
  • MIC1-4 input with adjustable gain and phantom power.
  • 4-channel output, each with independent bass/treble adjustment.
  • Supports up to 4 remote microphone stations.
  • Built-in MP3 (U disk/SD card) player function plus FM radio function.
  • 4-channel outputs support the remote panel control.
  • Distortion, protection, signal, output status indicator.
  • 1-4 Channels enjoy priority and mixing selection function.
  • Priority input EMC alarm sound source.
  • ALARM port to play the specified alarm track.
  • Built-in Bluetooth function and high-gain Bluetooth antenna
  • 4-channel MUTE ports can be connected to the fire control port.
  • Priority: MUTE>EMC>REMOTE MIC> MIC1-4>MIC5-6 LINE5-6.

Specifications

ModelT-2120UCT-2240UCT-4120UCT-4240UC
Output terminal4-16Ω, 100V
Output power2*120W2*240W4*120W4*240W
Input sensitivity & impedance

MIC1-6 input: 5mV-350MV±40MV/600Ω

AUX1-4 input: 350mV±40MV/10KΩ unbalanced RCA connection terminal

EMC input: 775mV/10KΩ unbalanced European connection terminal

Output sensitivity & source impedanceOUT1-4 OUT: 1000mV/470Ω unbalanced RCA connection terminal
Tone

Bass: ±10dB at 100Hz

Treble: ±10dB at 10KHz

Frequency response80~16KHz(+1dB,-3dB)
SNRMIC1-6: 66dB; AUX1-4: 80dB
THD< 0.5% (at 1KHz, 1/3 rated power)
Phantom power48V(±2V)
