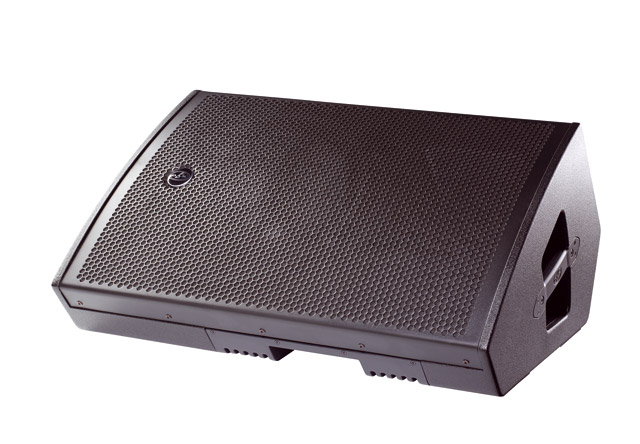

15", 2-way, 550 W (LF) + 220 W (HF) self powered wedge

Manufacturer: DAS Audio
Low profile active monitor wedge
  • Two-way powered stage monitor system for superior sound performance.
  • Class D amplifier delivers 550 W LF and 220 W HF power.
  • 15” loudspeaker features a robust 3” voice coil for enhanced bass.
  • Low-profile design minimizes visual impact on stage setups.
  • Available in right and left hand versions for versatile placement.
SKU: ROAD15A
Availability: Out of Stock - can backorder and will be dispatched once in stock.
$6,323.85 incl tax
i h

Road 15A Features - 2-way powered stage monitor system - Two channel Class D amplifier 550 W LF + 220 W HF - 15” loudspeaker with 3” voice coil” - M-75 compression driver - Low-profile design for minimum visual impact - Hidden connector panel and LEDS - Two side located handles-Heavy duty Iso-Flex paint finish - Right and left hand versions (Road 15AR/Road 15AL) The Road 15A is a powered stage monitor that incorporates a 15R4 cone loudspeaker for bass reproduction. High frequencies are handled by an M-75 compression driver with 1.5” exit, a 3” titanium diaphragm and EFW voice coil. The biamplified system uses a 3G Class “D” amplifier with 550 W powering the low frequency section and a 220 W powers the highs. The montior´s compact dimensions, attractive design and standard pole mount socket make it ideal for use as a pole mountable multi-purpose system.

Technical Data Nominal LF Amplifier Power 550 W Nominal HF Amplifier Power 220 W Frequency Range (-10 dB) 47 Hz-23 kHz (EQ Monitor) Rated Peak SPL at 1 m 134 dB Dispersion 40ºH x 60ºV Rotatable Enclosure Material Birch Plywood Color/Finish Black/Iso-Flex Paint Connectors Input: Female XLR Loop Thru: Male XLR AC Input: PowerCON AC Output: PowerCON AC Requirements 115 V, 50/60 Hz 230 V, 50/60 Hz Current Draw (1/3 power @ 230 V) 1.7 A Dimensions (H x W x D) 37.1 x 74.7 x 48 cm 14.6 x 29.4 x 18.9 in Weight 27.3 kg (60 lb)
