3 input HDBT Auto Wallplate Scaler/Switcher TX

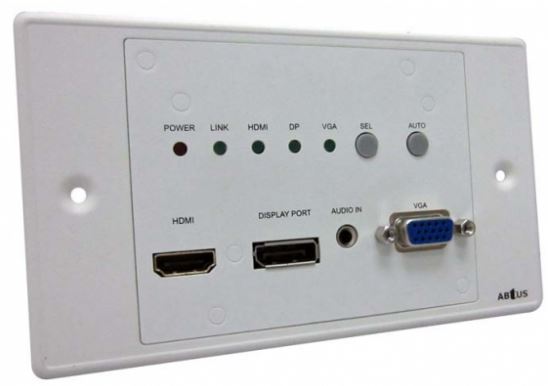

The DiPP04/AP1 is an automatic switcher that switches and scales input from multiple formats to output onto a display via HDBaseT.

It is able to automatically detect and switch input signals from HDMI, Display Port and VGA based on manual selection or last connected input. The signal will be automatically scaled and passed through a single CAT-5 cable using HDBaseT technology to the display (or receiver) up to 70m.

Bi-directional IR and RS-232 commands can also be passed through the same cable to control the source and display. Power over cable is also supported, allowing the receiver or transmitter to power up without connecting to a power adaptor. The DiPP04/AP1 also comes with a 8 pin 2.54mm connector for convenient integration with ABtUS IFP-600 series of modular interface panels.

? Automatic input detection &s election (Based on manual selection or last connected input)
? Supports up to 4K 2K resolutions
? Scaled video output to 1080p @ 60Hz
? Extends HDMI / VGA up to 70m
? Supports bi-directional IR and RS-232
? Support POC (power over cable)
