4 Channel x 500w/4ohm Dante Power Amplifier

4 channel x 500W/4Ω Dante Power Amplifier

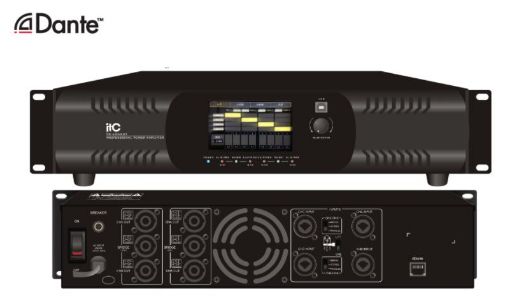

The T-4500DT is a 4 channel x 500W/4Ω Dante Power Amplifier, designed to deliver high-quality audio and reliability for a variety of applications. Ideal for PA systems, theaters, outdoor performances, sports venues, pubs, nightclubs, concerts, auditoriums, and banquet halls, the T-4500DT ensures excellent sound reproduction in even the most demanding environments.

With Dante network support, the T-4500DT offers efficient and low-latency network audio transmission, making it perfect for large-scale setups and distributed audio systems.

Key Features:

✔ Dante Network Support – Built-in Dante protocol for low-latency network audio transmission. Supports 4 channels of transmission and 4-channel receiver, enabling network audio expansion across multiple devices.
✔ Advanced Power Amplification – Latest Class-D amplifier design for low distortion and high efficiency, offering 500W per channel at 4Ω.
✔ Switch Mode Power Supply – Includes a soft-start feature to reduce current draw at power-up, enhancing the system's reliability and energy efficiency.
✔ Intelligent Peak Clipping Limiter – Protects both the amplifier and speakers from damage by preventing distortion at high output levels.
✔ Flexible Input Options – Standard XLR + TRS 1/4 combo inputs, plus three input sensitivity options to accommodate a wide range of signal sources.
✔ Stereo/Bridge Mode – The amplifier can be operated in stereo or bridge mode, providing flexibility for different system configurations.
✔ High-Performance DSP – Equipped with 32-bit floating-point DSP, 96kHz sampling frequency, and 24-bit A/D and D/A conversion for optimal sound quality.
✔ User-Friendly Interface – Integrated 4-inch touch screen for easy control and monitoring, along with PC software for managing multiple devices simultaneously.
✔ Comprehensive Output Control – Each output channel features 8 parameters of parametric equalization, electronic crossover, delay, limiter, gain, polarity, and more for advanced sound shaping.
✔ Multiple Protections – The T-4500DT is safeguarded against over-voltage, under-voltage, over-temperature, over-current, DC, short circuits, and more to ensure long-term reliability.
✔ Efficient Cooling System – Equipped with an intelligent cooling fan to maintain optimal operating temperature during extended use.

Specifications:

• Power Output: 4 x 500W at 4Ω

• Input Type: XLR + TRS 1/4 combo inputs

• Sensitivity Options: Three input sensitivity settings for diverse signal sources

• Amplifier Type: Class-D with low distortion and high efficiency

• Dante Network: Supports 4-channel transmission and 4-channel receiver for easy network audio expansion

• DSP Performance: 32-bit floating-point DSP, 96kHz sampling frequency, 24-bit A/D and D/A

• Control Interface: 4-inch touch screen, PC software for multiple devices

• Protections: Over-voltage, under-voltage, over-temperature, over-current, DC, short circuit

• Cooling: Intelligent cooling fan for thermal management

• Modes: Stereo and bridge mode operation

• PC/Laptop Connectivity: USB/RS45 interface for remote control

• Weight: 14.5 kg
