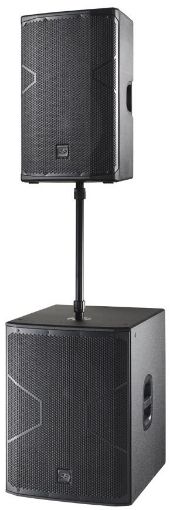

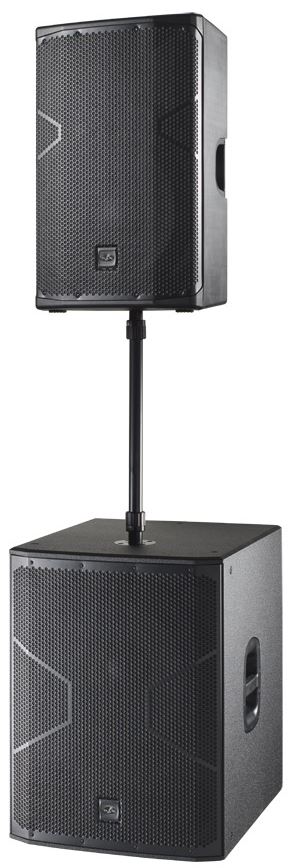

600W Active 18" long excursion bass-reflex subwoofer

The DAS Audio Altea-718A is a powered subwoofer system designed to provide extended bass response for the Altea full-range cabinets. At the heart of the system is a DAS 18FW4 bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3″ voice coil for long excursion. Cooling is assured thanks to the 18FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

Driving the DAS 18FW4 loudspeaker is a cutting-edge 1200 Wpeak Class D amplifier. On the rear panel a balanced input connector and stereo “loop thru” output connections are available to provide signal for Altea satellite systems. Thanks to the digital presets accessible by way of a DAScontrol™ interface on the rear of the cabinet, setting up a combo system with Altea full-range systems is easy.



– Powered subwoofer system

– Lightweight Class D amplifier

– High efficiency 18″ loudspeaker

– DAScontrol™ for easy setup and adjustment

– 24-bit high-end DSP with LCD screen

– Integrated rigging points and pole mount socket





Nominal LF Amplifier Power 1200 Wpeak - 600 Wcontinuous

Frequency Range (-10 dB) 45 Hz - 138 Hz

Rated Peak SPL at 1 m 134 dB

Connectors INPUT: 2 x Female XLR

LOOP THRU: 2 x Male XLR

AC INPUT: Male IEC

AC Requirements 5 A, 115 V, 50/60 Hz

2.5 A, 230 V, 50/60 Hz

Enclosure Material Birch Plywood

Color/Finish Black/ISO-flex

Dimensions (H x W x D) 71 x 54 x 64.7 cm

27.95 x 21.26 x 25.47 in

Weight 40.5 kg (89.1 lb)
