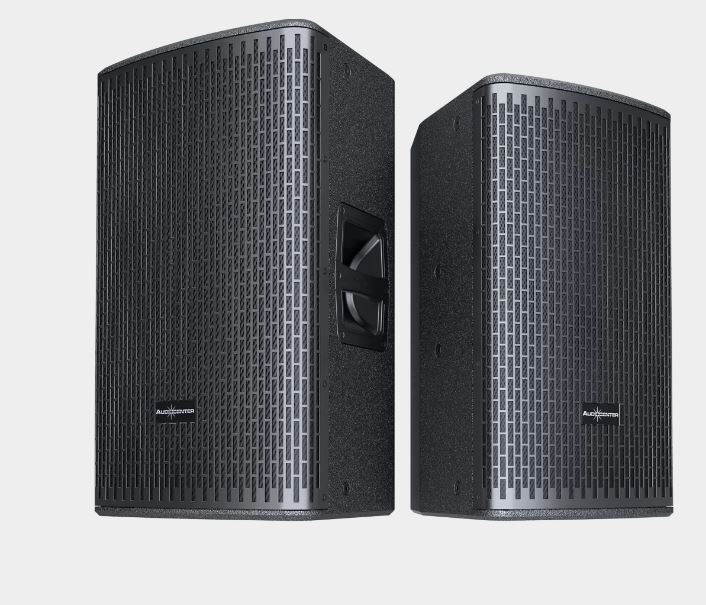

GT508P is a 150w RMS passive 8" 2-way speaker with built-in passive crossover. This loudspeaker can be used in multimedia function halls, museums, houses of worship, shopping malls and other fixed installations.
The cabinet is made of high-quality wood, with an innovative and compact multi-purpose symmetrical cabinet structure CNC machined. This provides clear and powerful perfect sound quality. The base mounting holes are available in 0° or 10° options and various installation locations and methods are provided for so the cabinet can meet different sound reinforcement installation environments.
Specifications
Type
Passive full range loudspeaker
Rated Power RMS
150W
Frequency Response(-10dB)
65Hz-20kHz
Horizontal Coverage
90°(60°)
Vertical Coverage
60°(90°)
Maximum Calculated SPL/1M (Continuous/Peak)
119dB/125dB
HF Driver
Customized driver, 1.75” voice coil and 1.0”exit
LF Driver
Customized 8” driver, 2.0” voice coil
Impedance
8Ω
Crossover Mode
Passive Crossover
Crossover Point
1.5kHz
Input Connectors
Speakon 4Pin
CABINET
Cabinet Material
CNC machined plywood
Coating
Durable Polyurea Coating
Cabinet Color
Black is the default color. Contact Audiocenter for customization
Grille
Iron mesh
Handles
1 top
Monitor Angle
/
Hanging Hardwares
M8 screw
Pole Mount
Base hole Φ35mm,0° or 10° options
Speaker Dimension (W×H×D)
245×447×320mm
Carton Dimension (W×H×D)
336×531×410mm
Net Weight
11.0kg
Shipping Weight
13.0kg
