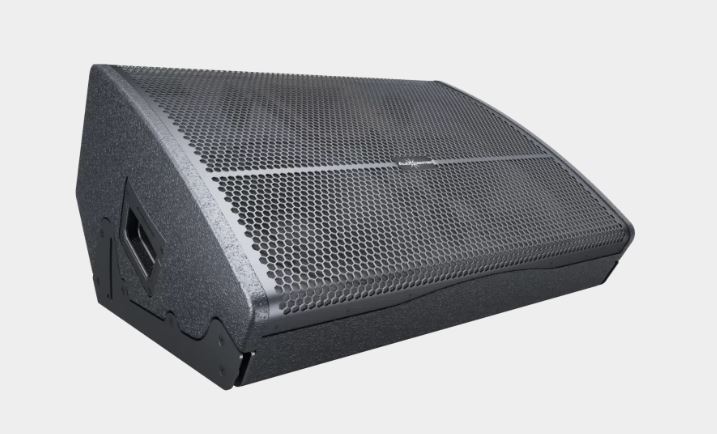

Active 2 x 10" Wedge monitor, 1100w RMS

Manufacturer: Audiocenter
Audiocenter DSP controlled wedge monitor speaker, 128dB
SKU: WM3210A
Availability: In stock
$1,666.35 incl tax
i h

Active DSP-controlled wedge monitor speaker

WM-DSP series is Audiocenter’s latest active DSP controlled wedge monitor speaker with high-output, reliability and supreme performance.
WM-DSP series is perfectly integrated with BrainCoreTM technology, with its advanced technology and scientific methodology, BrainCore™ analyses and processes the input signal, DSP module, Class D amplifier and loudspeaker optimally, achieving smooth transitions between the LF and HF, excellent frequency response and audio reproduction even at high levels of SPL.
The wave guide of WM-DSP series provides a perfect coverage angle of 60° x 40°(Live band), 60° x 60°(Stage), which can achieve symmetrical sound field coverage of large and medium-sized shows and live bands. WM-DSP series fulfill the requirements of excellent performance and highend audio reproduction.


WM-DSP series is specially designed for touring performance and fixed installation like Live sound reinforcement floor monitor, Touring systems, Clubs, Auditoriums, Theatres and Houses of Worship.



Type

Active DSP-controlled Wedge Monitor loudspeaker

Frequency Response(-10dB)

55Hz-20kHz

Horizontal Coverage

60° x 40°(Live band),60° x 60°(Stage)

Maximum Calculated SPL/1M (Continuous/Peak)

126dB/132dB

HF Driver

Customized driver, 3” voice coil and 1.4”exit

LF Driver

Customized 2×10” driver, 2.5” voice coil

DSP



Processor

96kHz signal sampling frequency

Presets

FLAT, VOCAL, DRUM

AMPLIFIER



Amplifier Circuitry

Class D

Power(RMS standards)

1600W

Peak Power

3200W

Frequency Response(1W 8Ω 2ch)

20Hz-20kHz(±0.5dB)

Intermodulation Distortion (20Hz-20kHz, half power)

<0.05%

Total Harmonic Distortion (20Hz-20kHz, Rated power 8Ω)

<0.05%

Cooling System

Cooling with fans, air convection

Protection

DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

Signal Input

Female XLR

Signal Output

Male XLR

Power Input

Power connector

Power Output

Power connector

Working Voltage

100V-130V~ or 220V-240V~ (±10%,50/60Hz)

Power consumption(1/8 output power)

117W

Cabinet



Cabinet Material

CNC made of Multilayer baltic birch plywood

Cabinet Color

Black is the default color. Contact Audiocenter for customization

Grille

Iron mesh

Handles

2 side

Cabinet monitoring Angle

30°/35°/40°/45°

Optional Accessories

Cover / Flightcase

Speaker Dimension(W×H×D)

620x338x465mm

Carton Dimensions(W×H×D)

466x725x542mm

Net Weight

33.0 kg

Shipping Weight

35.0 kg
