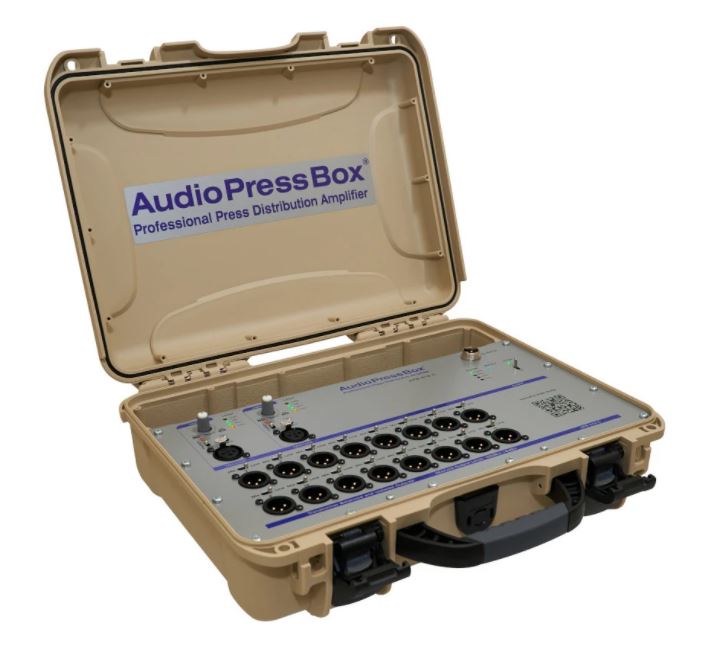

Active distribution amplifier -portable, in case

Manufacturer: Audio Pressbox
1 review(s) | Add your review
2 mic/line in, 16 line/mic out, battery powered
  • Waterproof case ensures durability and protection in various environments.
  • Two balanced MIC/LINE inputs with gain control and 26dB PAD.
  • Sixteen high-quality balanced outputs with transformer isolation for versatility.
  • Built-in compressor and limiter for optimal audio performance and control.
  • Li-Ion AccuPack offers approximately 10 hours of reliable running time.
SKU: APB-216C
Availability: In stock
$5,721.25 incl tax
i h

Active distribution amplifier in waterproof case with 2 MIC/LINE Inputs, 16 LINE/MIC Outputs and internal  batteries (AccuPack) with approx 10 hours running time.

Professional active AudioPressBox portable unit

• 2 MIC (phantom)/LINE Input - balanced with gain control and 26dB PAD
• 16 High quality balanced Outputs, independent transformer isolated and switchable LINE or MIC Output level
• Built-in Compressor and Limiter for each Input
• Built-in Li-Ion AccuPack with microprocessor controlled battery management, 10 hour full load capacity


Standard case supplied is Tan, but available in a range of colours you can specify.

Audio Press Box APB-216 C
Type2 in 16 out
Groups1
Input section
Inputs2
Input connectorsBalanced, XLR
Input GainMIC +22/+62 dBLINE -4/+36 dB
Max. input levelMic: -10/-30dBuLine: +36/-4dBu
Phantom Voltage48V
Input ImpedanceMic: 2,4 kOhmLine: 3,5 kOhm
Output section
Outputs16 Line/MIC level
Output connectorsBalanced, XLR
Nominal Output Level+6dBu
Maximum Output Level+20dBu (no load)
+14dBu (600kOhm)
Output impedanceMic: 220 OhmLine: 600 Ohm
Transformer isolated outputsYes (each output)
SNR86dB
Frequency Response120Hz to 30kHz/-1dB
ControlsInput section: 26dB PAD, Input gain, PhantomOutput section: Power switch, Output PAD
IndicatorsInput section: Phantom power, Input level
Power Supply24V DC, 1A external adaptor
BatteryLi-Ion, 14,4 V 2200mAh
Battery operation timeup to 8 hrs
Dimensions (WxHxD)370x120x300 mm
Weight4.7 kg
