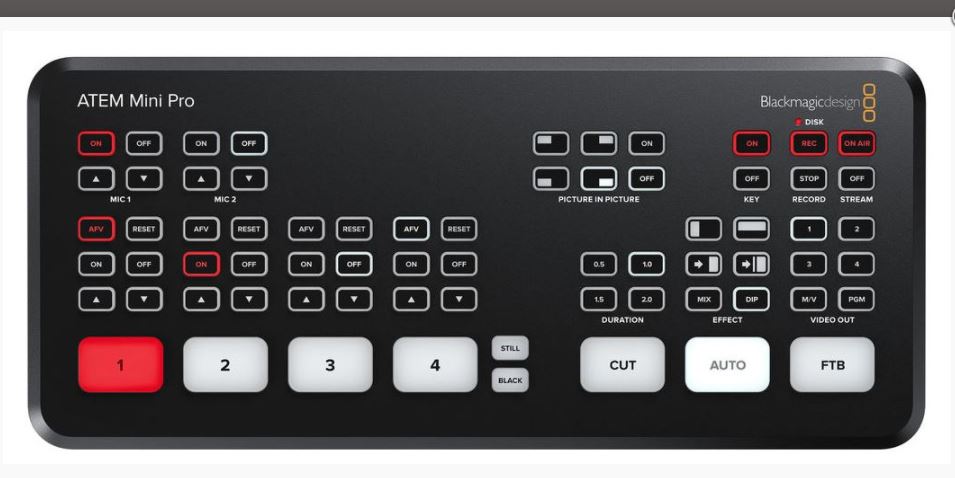

Blackmagic ATEM Mini Pro Livestream Switcher

4-Channel Live Stream HDMI Switcher
  • Connect up to 4 independent cameras for versatile live streaming.
  • Built-in hardware streaming engine for high-quality online broadcasts.
  • Supports multiple platforms like YouTube, Facebook, and Twitch.
  • Directly record streaming data to USB flash disks in H.264 format.
  • Easy setup and use, recognized as a webcam by software.
SKU: ATEM-MINI-PRO
Availability: In stock
$558.90 incl tax
i h

ATEM Mini Pro live stream video switcher allows you to stream live interviews, theatre, music videos, education and training, business presentations, sport and esport competitions, investor updates etc...

Connect up to 4 independent cameras, and choose any software you like, such as Open Broadcaster for live streaming, or Skype for Powerpoint presentations.

Fast to set up and easy to use. - it works with software and platforms such as Open Broadcaster, XSplit Broadcaster, YouTube Live, Facebook Live, Skype, Zoom, Twitch, Periscope, Livestream, Wirecast and more.

It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.

Atem connects to your PC/MAC and looks like a single webcam meaning you can plug in and instantly get working with any video software. The software is tricked into thinking the ATEM Mini is a common webcam, but it's really a live production switcher.

The ATEM Mini Pro model has a built in hardware streaming engine for live streaming via its built in Ethernet connection. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with much simpler settings. Just select the streaming service and enter the streaming key!

The ATEM Mini Pro model also supports direct recording of your streaming data to USB flash disks! That means you get very long recordings in the same H.264 video files with AAC audio that you streamed, so you can direct upload to any online video site, such as YouTube and Vimeo.

Product Features
  • 4-Channel Live Stream HDMI Switcher
  • Control up to Four BMPCC 6K/4K Cameras
  • Live Tally, Stream and Record Status
  • Record Button, Channel Preview Multiview
  • 2-Channel Digital Audio Mixer Per Source

Specifications

Input/Output
Inputs4 x HDMI Type A
2 x 3.5 mm Stereo Analogue Audio
1 x RJ45 Ethernet
Outputs1 x HDMI
1 x USB Type-C
Video & Audio
Video Input FormatsHDMI Video:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50

HDMI Resolutions for Computers:
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
Video Output Formats1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Video Inputs4 x HDMI
Video Output1 x HDMI
Audio Input2 x 3.5 mm Stereo
Other I/O1 x USB Type-C
1 x RJ45, Gigbit Ethernet
Video Sampling4:2:2 YUV
Colour Precision10-Bit
Colour SpaceRec. 709
Colour Space ConversionHardware-Based, Real Time
Embedded Audio2-Channel Input and Output
Audio Mixer6-Input, 2-Channel
Media Player1 x Player with Fill and Key
Still Image Capacity20
Image Format SupportPNG, TGA, BMP, GIF, JPEG, TIFF
General
Keyers1 x Upstream
1 x Downstream
1 x Advanced Chroma
2 x Linear/Luma
1 x Transition (DVE Only)
LayersUp to 5
Generators1 x Pattern
2 x Colour
DVETransition Keyer
Monitor Resolution1366 x 768 or Greater
Operating System SupportmacOS 10.13, 10.14, or Later
Windows 10
Power Input1 x Barrel
Voltage12 V
Power Draw18 W
Operating Temperature41 to 104°F / 5 to 40°C
Storage Temperature14 to 140°F / -10 to 60°
Relative Humidity0 to 90% Non-Condensing
Dimensions9.4 x 4.1 x 1.4" / 23.8 x 10.4 x 3.6 cm
Weight19.4 oz / 550 g
