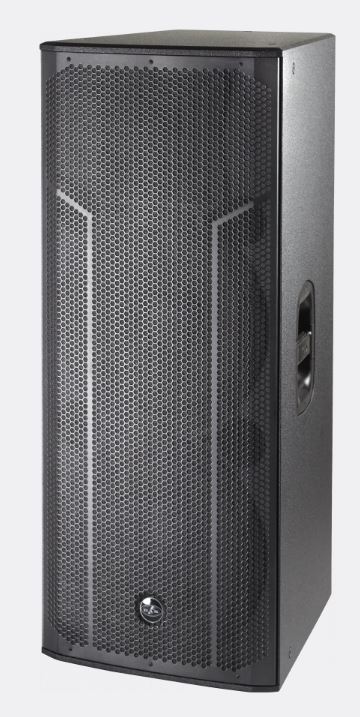

DAS Active, Bi-amp 500W RMS, 2x15" 2-way speaker

Manufacturer: DAS Audio
1 review(s) | Add your review
Full-range, point-source speaker, 60x90, 45Hz-20k, 134dB
  • Active system with dual 15MI speakers for superior sound performance.
  • Birch plywood enclosure ensures a warm, natural sound quality.
  • DAScontrol™ interface features a 24-bit DSP with LCD screen.
  • Includes multiple inputs: XLR, 3.5 mm mini jack, and powerCON.
  • Ideal for live sound reinforcement, bands, DJs, and presentations.
SKU: ACTION-525A
Availability: In stock
$4,023.85 incl tax
i h

ACTION-525A is an active system composed of two 15MI speakers that deliver a greater SPL than the simple 15” plus enhanced bass for events that require both powerful sound and simple adjustment.

In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.

The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.

Get the Spec Sheet Here

Features

Active biamp system
Dual-channel 1000 Wpeak Class D amplifier
Birch plywood enclosure
Durable ISO-flex paint
DAScontrol™ interface for easy setup and adjustment
DSP with presets and LCD screen

Applications

Live sound reinforcement
Bands, DJ´s and performers
Speech and vocals
Music playback in entertainment
A/V, conferences and presentations

Performance
Frequency Range (-10 dB)45 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical Coverage60º
Maximum Peak SPL at 1 m134 dB
Electronics and Connectors
Nominal Amplifier Power (continuous)500 W
Nominal Amplifier Power (peak)1000 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity1.95 V (+8 dBu)
Audio Signal Input Connector2 x Female XLR
AUX Input1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector1 x Male XLR
ControlDAScontrol™
AC Input ConnectorpowerCON NAC3MPA
Operating Range90-127/180-250 VAC
Current Draw 115 V2.2 A
Current Draw 230 V1.1 A
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )1.090 x 445 x 515 mm
42,9 x 17,5 x 20,3 in
Net Weight39,5 kg ( 87,1 lb )
Components
LF Driver15MI
HF DriverM-44
Horn/WaveguideBC-916
Shipping
Carton Dimensions ( H x W x D )1.165 x 515 x 560 mm
45,9 x 20,3 x 22,1 in
Shipping Weight43,5 kg ( 95,9 lb )
