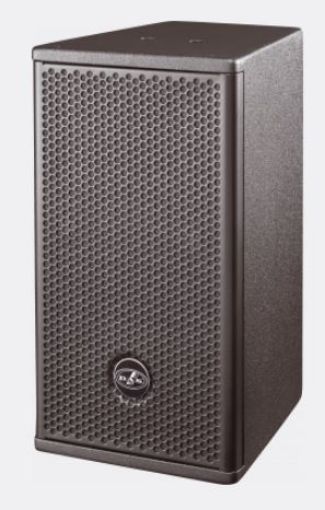

D.A.S Artec308, 150w, 8" 2-way speaker

Manufacturer: DAS Audio
Quality speaker system, c/w U-bracket
  • Utilizes an 8" low frequency transducer for deep bass response.
  • M-26 compression driver ensures clear and powerful sound quality.
  • Constructed from high-quality Baltic Birch plywood for durability.
  • Rotatable horn allows for flexible vertical or horizontal installation.
  • Includes U-bracket mount for easy installation in various settings.
SKU: ARTEC308
Availability: In stock
$1,493.85 incl tax
i h

The ARTEC-308 2-way passive full range loudspeaker utilizes a 8″ low frequency transducer and the M-26 compression driver. The cabinet is manufactured using top quality of Birch plywood and finished with a durable black paint finish. The 8″ woofer provides an exceptional bass response considering the cabinets reduced size.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

A rotatable horn allows the systems to be installed in either the vertical or horizontal position maintaining the needed dispersion characteristics.

The cabinet is delivered with a U-bracket mount included.

Features

1 x 8GU low frequency loudspeaker
1 x M-26 compression driver
Rotatable 90º x 60º hornVertical or horizontal positioning
VESA75/VESA100 standard threaded mounting points
AXU-A308 U-Bracket included

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

Download spec sheet here

Performance
Frequency Range (-10 dB)60 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical Coverage60º
Nominal Impedance8 ohms
RMS Power Handling150 W
Peak Power Handling600 W
On-axis Sensitivity 1W/1 m92 dB SPL
Maximum Peak SPL at 1 m120 dB
Recommended AmplifierPA-900
Recommended ProcessorDSP-226
Connectors
Audio Input ConnectorCovered Barrier Strip Terminals
Audio Output ConnectorCovered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorBlack
Depth245 mm (9,7 in)
Dimensions ( H x W x D )450 x 290 x 245 mm
17,7 x 11,4 x 9,7 in
Net Weight10,0 kg ( 22,1 lb )
Components
LF Driver8GU
HF DriverGM-M26
Horn/WaveguideBCT-96
Shipping
Carton Dimensions ( H x W x D )541 x 310 x 355 mm
21,3 x 12,2 x 14,0 in
Shipping Weight13,5 kg ( 29,8 lb )
