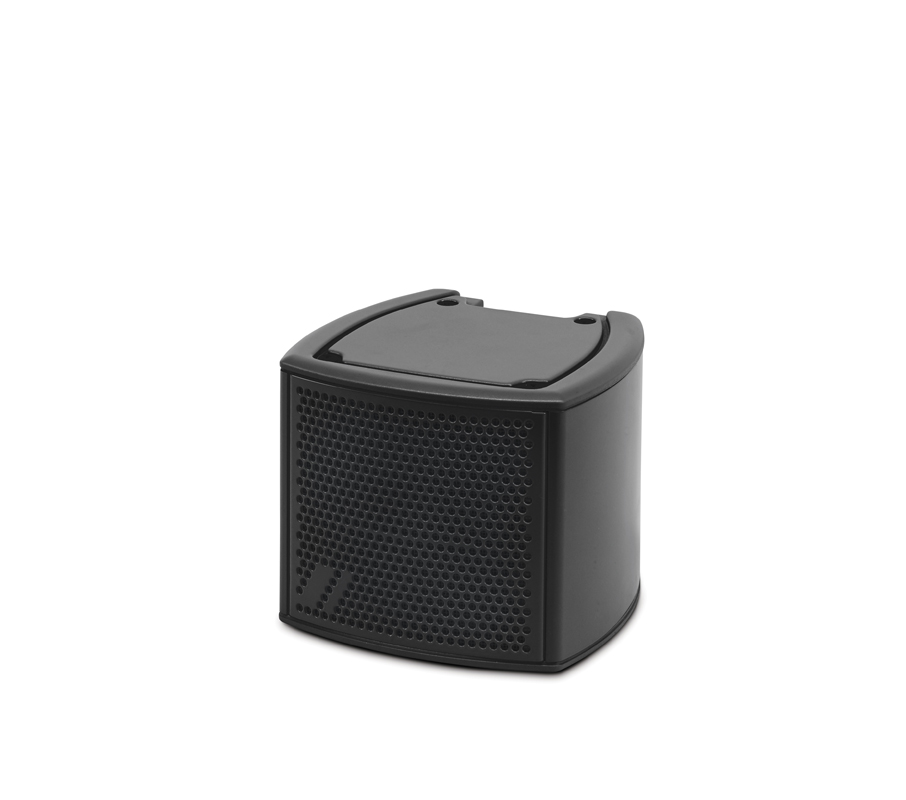

DAS Audio Quantum Q3T Speaker

The DAS Audio Q-3-T is a highly compact and discrete system ideal for short distances, for creating ambience, and for frontfill and under-balcony sound reinforcement. Like the other systems in the series, the Q-3-T has two operating modes (voice and music) that guarantee outstanding speech intelligibility and excellent music reproduction in any acoustic environment.

The aluminum enclosure and the IP-54 kit make this a highly reliable and durable choice, available in any RAL color.

Standard pricing is for Black or White.



– Passive system

– Aluminum enclosure

– 1 x 3”, 3P full-range speaker

– Dispersion HxV: 120º x 120º

– SPL peak: 106 dB

– Multi-tap 100 / 70V transformer included

– Low and high impedance operation

– Available in all RAL colors



RMS Power Handling 20 W

Peak Power Handling 80 W

Frequency Range (-10 dB) 150 Hz - 20 kHz

On-axis Sensitivity 1 W / 1 m 87 dB SP

Rated Peak SPL at 1 m 106 dB SPL

Transformer Taps 7.5/15/20 W (100 V)

Dispersion 120º H x 120º V

Enclosure Material Paintable Aluminum

Color/Finish Any RAL color

Connectors Phoenix 2.54 mm 2-way

Dimensions (H x W x D) 10.5 x 12.6 x 12.5 cm

Weight 1.6 kg
