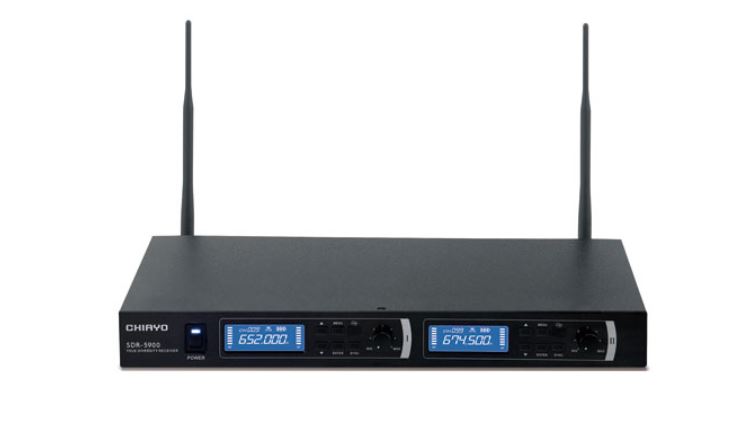

Dual UHF Microphone Receiver: 100 Channel x2

Manufacturer: Chiayo

True Diversity Wireless Microphone System, 19" 1RU

Dual-channel true-diversity receiver for enhanced audio quality and reliability.
One rack space design with dual high-contrast LCD displays for easy monitoring.
100 user-selectable UHF channels with auto scan for interference-free operation.
Noise-cancelling circuits and adjustable sensitivity enhance signal clarity and range.
Convenient gain control and outputs for both MIC and LINE connections.

SKU: SDR-5900-IRDA

Availability: Low stock

$799.00 excl tax

Qty:

i h

Dual channel True-diversity wireless microphone receiver.

One rack space, two mic receivers with a balanced XLR audio out for each, and a 6.3mm Jack mixed output.

Guaranteed high-quality balanced audio with the reliability of true-diversity receivers.

Features
EIA Standard 1U rack-mountable metal chassis with dual high contrast LCD displays.
(Channel, frequency, RF and AF meter bars, antenna selection and transmitter battery level)
100 factory preset user-selectable UHF channels.
True diversity reception for best performance and reliability.
Pilotone and noise-cancelling dual-squelch circuits eliminate noise, interference and reduce signal dropouts.
Adjustable SQ. Increases receiver range with higher sensitivity and reduces interference with lower sensitivity.
Auto Scan function allows quick search for an interference-free working channel from 100 presets. World-first patented IrDA technology provides rapid and precise 2-way frequency sync between the receiver and transmitter.
Convenient gain/volume control(s) and switchable MIC-LINE output levels for connecting either MIC or LINE inputs.
Receiver provides power for CHIAYO antenna systems to enhance reception range and signal stability.
Single channel audio output jack: balanced XLR.
Mixed audio output jack: unbalanced 6.3mm.

Model	SDR-5900
Channel	Dual
Chassis	EIA standard 1U
Frequency Range	UHF 500 - 960 MHz
Bandwidth	25 MHz
Receiving Mode	True diversity
Peak Deviation	± 40 kHz
Channel Sync	2-way (RX ⇔ TX)
Sensitivity	S/N > 80 dBm at 10 dBμV
S/N Ratio	> 110 dB(A)
T.H.D.	< 0.5% @ 1 kHz
Frequency Response	50 Hz - 18 KHz
Receiving Antenna	Rear Panel. Detachable
Preset Frequencies	100
Oscillation Mode	PLL synthesized, frequency stability ± 0.005% (-10 - +60°C)
Squelch	Pilotone & Noise-cancelling dual-squelch circuit
Audio Output Adjustment	Gain control circuit for adjustment of output volume
Output Connector	Balanced XLR and unbalanced 6.3 Ø
Output Level Switch	MIC-LINE
Power Supply	12V DC,1.0A
Power Consumption	12 W
Dimensions (W × H × D)	420 × 44 × 205 mm
Weight	1.9 kg
