Flexible 6x4 audio matrix mixer for multi-zone control and paging applications.

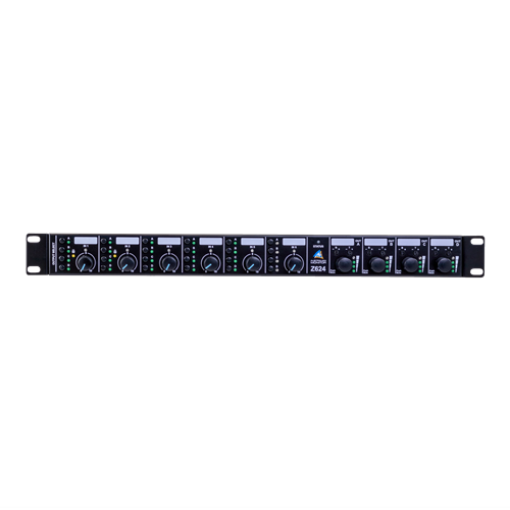

The Australian Monitor Z624 is a versatile four-zone audio matrix mixer designed as an entry-level zoning and paging solution for commercial audio installations. Featuring six Mic/Line inputs that can be independently mixed or matrixed to four mono outputs, it offers intuitive front-panel routing and flexible configuration through free PC software. The Z624 includes advanced features like priority input control, a customisable tone generator, a message player via micro SD card, and external muting and control lockouts. Expandable with remote wall panels, local audio inputs, and the optional Z624PS Paging Station, it provides scalable audio control for retail, hospitality, education, and corporate environments.
FEATURES
- 4 mono zone outputs
- 6 Mic/line inputs and 1 local input per zone
- Input 1 + 2 priority control
- Supports two WP10, WP4R or WPVOL wall panel controllers per zone
- Local input per zone, via the accessory ports, allows connection of WPBT, WPML or WPXLR wall panels
- Optional Z624PS Paging Station with gooseneck microphone
- Built-in customisable Tone Generator and Message Player
- Intuitive front panel console style routing
- Z624 PC Configuration Software free via download
- USB connectivity
INPUTS AND OUTPUTS
The Z624 has 6 Mic/Line which can be independently mixed or matrixed to any of the 4 balanced mono outputs.
A local audio input can optionally replace Input 6 for each zone using an audio wall panel.
TONE GENERATOR
An in-built tone generator provides EVAC, ALERT, INTRUDER, BELL and CHIME tones. The tones can be overridden using replacement files placed on a customer provided micro SD card.
PRIORITY CONTROL
Input 1 and Input 2 can be enabled as priority inputs which can mute lower priority inputs. Each output zone can be independently enabled or disabled in the priority scheme. In addition, a MUTE contact closure is also provided for globally muting the system.
Z624 CONFIGURATION SOFTWARE
The Z624 includes a free, downloadable PC configuration software to setup and control the system. Easily modify rear panel controls, priority schemes, signal routing, level offsets and wall panel customisation. Download it now from the download section of this page and see what the Z624 can do.
Z624PS PAGING STATION
The Z624 supports one Z624PS paging station which can be connected to any accessory port. The paging station has four zone selection buttons for individual zone paging as well as an all page button.
WALL PANEL AUDIO CONTROL
The Z624 system supports up to two wall panel controllers per zone.
Wall panels can provide source selection, volume control, muting and message playback controls.
- WP10 - 10 Button wall controller
- WP4R - 4 Button and Volume Control
- WPVOL - Volume Control
Additionally, the system supports up to two audio input wall panels which can feed local audio back into the Z624 system via the accessory ports (The wall panels are summed together in the Z624 and routed to replace Input 6).
- WPBT - Bluetooth receiver
- WPML - Mic/Line Input
- WPXLR - Line Level Input
MESSAGE PLAYER
An in-built message player allows audio files to be played from wall panel controls.
Place audio files on a customer supplied micro SD card and then program the wall panels to trigger the messages using the PC configuration software.
