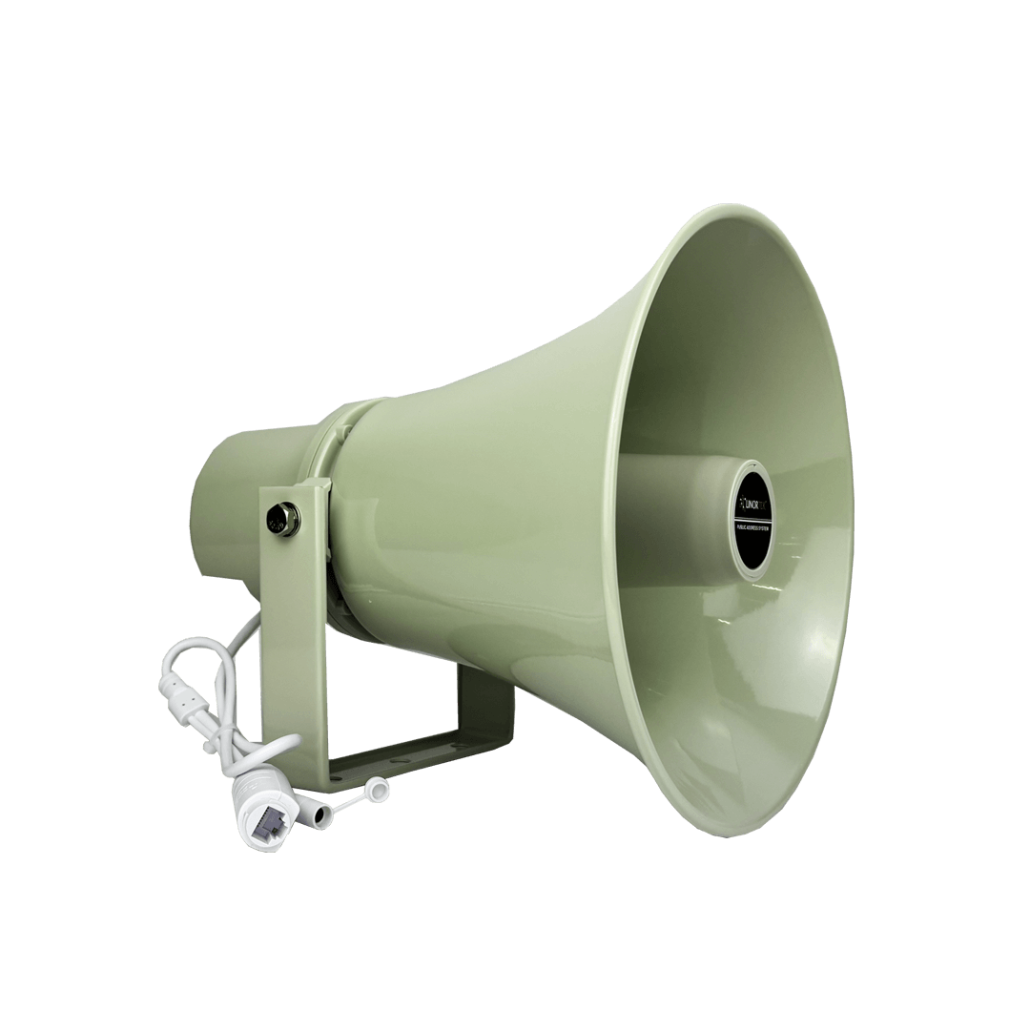

Netbell H30-709 30W IP Audio Horn Speaker 122dB

H30-709 IP Horn Speaker

The Netbell-H30-709 IP Horn Speaker delivers clear audio and voice messages in high-noise industrial environments. This commercial-grade speaker seamlessly integrates with other communication models (IP call station, intercom terminals) and the Netbell-NTG tone generator for break time signals and emergency notifications. Want to integrate with your VOIP phone system? No problem! Just add a VOIP gateway set to the system, you can easily build a facility-wide IP paging with no special IT skills required.

leveraging Power over Ethernet (PoE), you only need one network cable for power and data— simpler installation, less equipment, and lower costs.

Communication Models

To set up paging with your IP speaker, first choose your preferred paging method. You have several options:

• IP call station for direct announcements
• Intercom terminal for stationed communication points
• Audio broadcast terminal for integrating with other external audio sources
• VOIP gateway for phone system integration for company-wide paging
• Or a combination of these methods for maximum flexibility

Control & Scheduling Models

Unlock the power of your IP paging system with the Netbell-NTG network audio message generator - add automatic break time alarms, routine reminders, and emergency notifications functionalities to your PA system.

Important Requirements

To achieve the best audio quality for your IP paging system, we recommend building a dedicated VLAN for this system with network equipment compatible with multicast protocol. Netbell IP paging devices support PoE/PoE+, and a properly configured network infrastructure will ensure a smooth installation.

• The speakers and the PC running the NACT desktop app must be on the same LAN
• Network and Switch Requirements:
  • Power over Ethernet (PoE/PoE+) Switch Ports
  • Minimum CAT5 cable with maximum of 100 meters from the device to switch
  • Network switch capacity to handle power loads for all devices
  • Router: Must support IGMP (Internet Group Management Protocol) and PIM (Protocol Independent Multicast)
  • Switch: Must support IGMP snooping
