OUTBACK 12X40W | IP65 Outdoor Moving Wash Light

Manufacturer: Event Lighting
12 x 40W Zoom Wash Outdoor Moving Head,
SKU: OUTBACK12X40W
Availability: Out of Stock - can backorder and will be dispatched once in stock.
$3,979.00 incl tax
i h

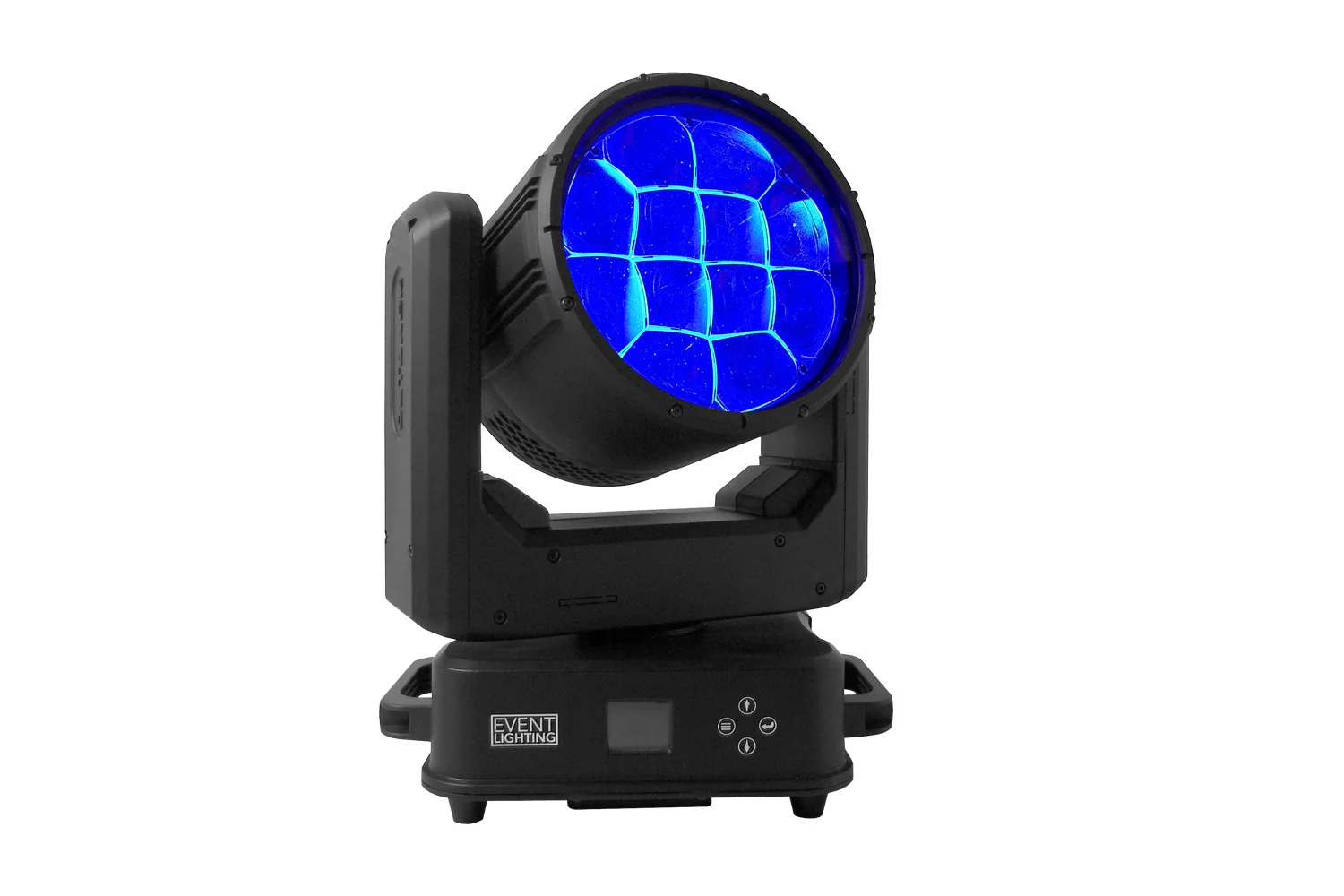

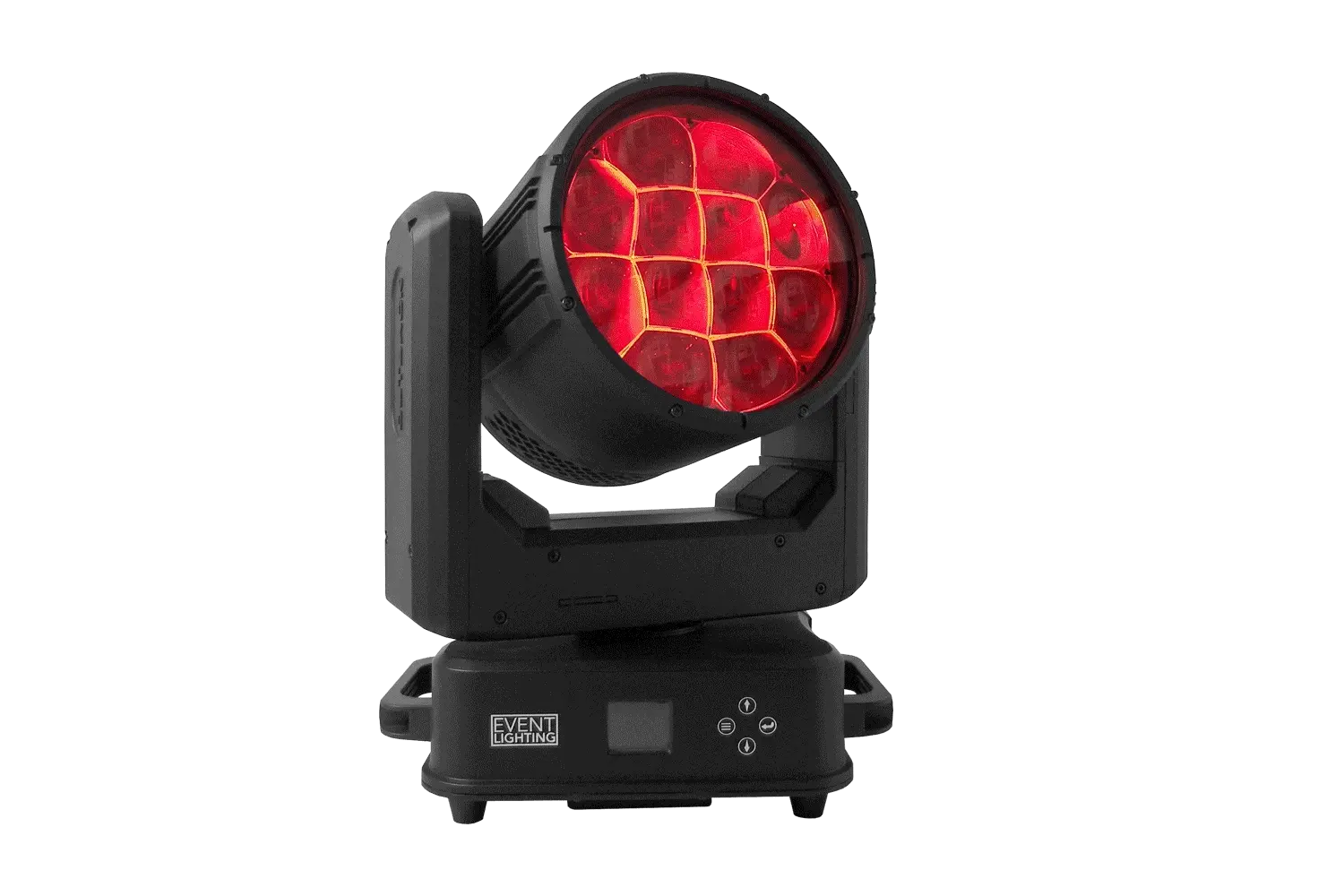

OUTBACK12X40W - 12 x 40W Zoom Wash Outdoor Moving Head

Introducing the OUTBACK12X40W - 12 x 40W Zoom Wash Outdoor Moving Head, a robust and versatile lighting solution designed to transform any outdoor space into a dynamic visual spectacle. With an IP65 rating, this moving washlight is built to withstand the elements, making it perfect for concerts, festivals, architectural illumination, and large-scale outdoor events.

Key Features:

  • Powerful Illumination: Equipped with 12 x 40W RGBW 4-in-1 LEDs, the OUTBACK12X40W delivers an impressive output of 34,250 lux at 3° from 5 meters, ensuring vibrant and impactful colors even in expansive environments.

  • Dynamic Zoom & Beam Control: Achieve precise coverage with a motorized zoom ranging from a tight 3° beam to a wide 45° wash, offering incredible versatility for various lighting designs. The 3°-25° beam angle further enhances its adaptability.

  • Stunning Color Rendition: Experience a full spectrum of colors with the RGBW LEDs, boasting a Correlated Color Temperature (CCT) from 2,500K to 10,000K and a CRI of >70 for rich, accurate hues. Individual pixel control allows for intricate and captivating effects.

  • Fluid & Precise Movement: With 16-bit resolution, 540° pan, and 270° tilt, the OUTBACK12X40W offers smooth and accurate positioning, complete with auto-repositioning to maintain your programmed looks.

  • Built for the Outdoors: Its durable ABS & Steel housing with a matte black finish and IP65 rating ensures reliable operation in challenging weather conditions, making it a true workhorse for any outdoor production. High-temperature automatic protection adds an extra layer of safety.
  • Flexible Control: Compatible with DMX512 and RDM protocols, and offering 17, 29, or 61 DMX channels, this fixture provides extensive control options. An intuitive TFT control panel simplifies setup and adjustments.
  • Long-Lasting Performance: Enjoy over 20,000 hours of LED lifespan, providing a dependable and low-maintenance lighting solution.



Specifications:

Photometrics

  • Light Source: 12 x 40W RGBW 4-in-1 LEDs
  • Beam Angle: 3°- 25°
  • Zoom Angle: 3°- 45°
  • Output: 34,250 lux @ 3°, 5m
  • CCT: 2,500 - 10,000K
  • CRI: >70
  • Led lifespan: > 20,000 hours

Effects

  • Dimming: 0-100%
  • Pixel Control: Yes
  • Strobe: 1 - 25 Hz
  • Zoom: Motorised, 3°-45°

Movement

  • 16 bit resolution
  • Auto repositioning
  • Pan: 540°
  • Tilt: 270°

Power

  • Input Voltage: 100-240V AC, 50/60Hz
  • Max power consumption: 560W
  • Connection: True1 in/out

Control

  • Control Protocol: DMX512, RDM
  • DMX Channels: 17 /  29 / 61
  • Interface: 3-pin/5-pin XLR (in/out)
  • Display: TFT control panel

Housing

  • Materials: ABS & Steel, matte black finish
  • Protection: High temperature automatic protection
  • IP rating: IP65
  • Dimensions: 337 x 240 x 474mm
  • Net Weight: 11 kg





Download Product Datasheet

Download DMX Chart

Download user manual

Warranty: 3 years
