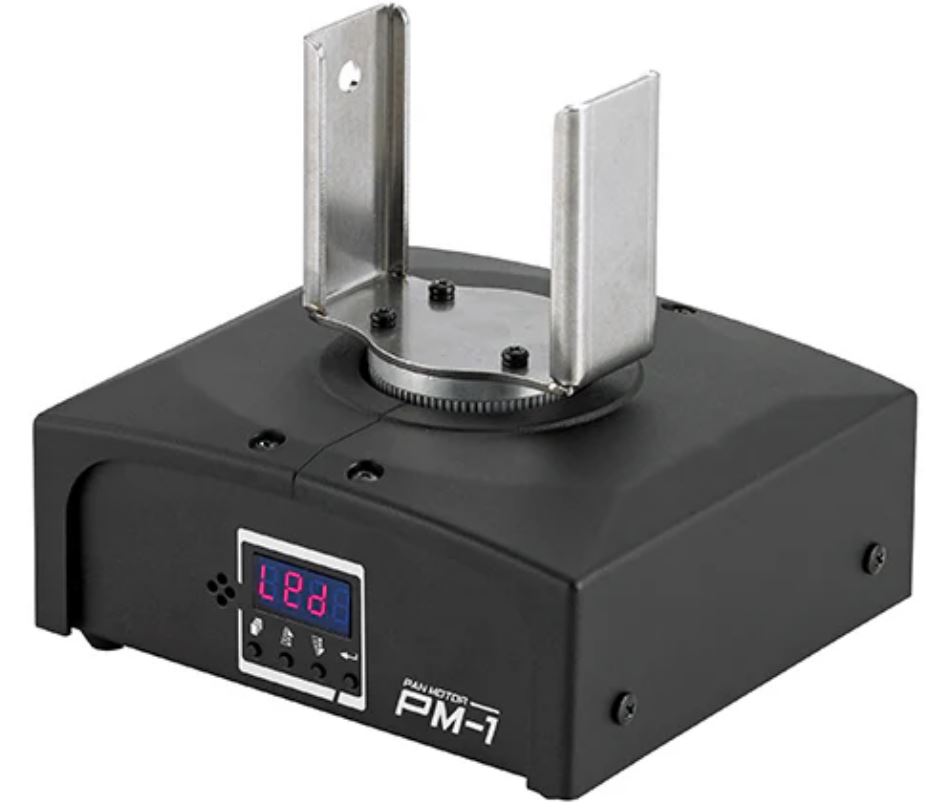

PM1 - Pan Motor for S500 & S500L Snow Machines

PM1 – Pan Motor for S500 & S500L Mirror Ball Systems

The PM1 Pan Motor is a pan movement accessory designed for use with the Antari S500 and S500L snow machine spray nozzles. Engineered for smooth, controlled operation, the PM1 offers up to 120° of pan movement—perfect for creating immersive snowfall or blizzard effects or repositioning your machine's spray trajectory during live productions and installations.

With DMX512 compatibility and manual control via the onboard 4-digit display, the PM1 integrates into any lighting or special effects setup. Durable metal housing and intuitive operation make it a dependable choice for indoor environments, ideal for stage productions, theme parks, event venues, or seasonal displays.

Key Features:

• Compatible with Antari S500 & S500L Snow Machines

• 120° Pan Range for wide coverage

• DMX512 & Manual Control Options

• Easy-to-use interface with 4-button display

• Lightweight, compact, and easy to rig

• 1 or 2 DMX channel modes

• Durable construction with metal chassis and plastic cover

• IEC power input and 3-pin XLR DMX connections

• Designed for indoor use (IP20)

Specifications:

• Input Voltage: AC100–240V, 50/60Hz

• Power Consumption: 11W

• Control: DMX512, manual (4-digit display)

• DMX Channels: 1/2 selectable

• Dimensions: L169 x W154 x H150.5 mm

• Weight: 1.9kg
