Powered, 600w 15" Arrayable Bass Reflex Subwoofer

Manufacturer: DAS Audio
  • Compact powered subwoofer with a powerful 15" low frequency transducer.
  • 1200 W peak Class D amplifier for exceptional sound performance.
  • Compatible rigging system for easy setup with EVENT-26A subwoofers.
  • Durable Birch plywood construction with protective DAS ISO-flex coating.
  • Digital presets for effortless system configuration via DAScontrol interface.
SKU: EVENT-115A
Availability: In stock
$4,594.25 incl tax
i h

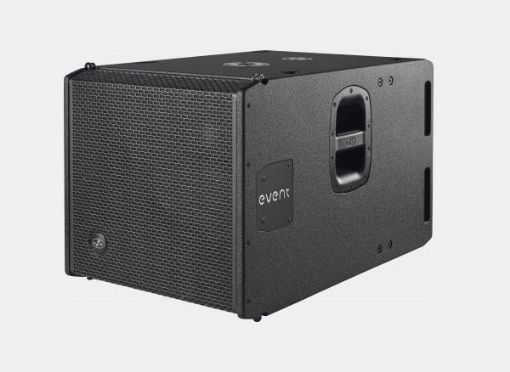

The EVENT-115A is a compact powered subwoofer system which uses a front-loaded 15” low frequency transducer developed by DAS. Designed as the companion subwoofer for the EVENT-26A, they share a compatible rigging system which allows the EVENT-26A to be flown from or stacked above the EVENT-115A.

The 15FW4 15″ loudspeaker used in the EVENT-115A has been engineered by DAS to provide outstanding performance and reliability. The 15FW4 speaker design has been optimized using Finite Element Analysis (FEA) and incorporates an extended 3″ voice coil for high-efficiency and long excursion offering a power handling capacity of 1200 Wprogram. Efficient cooling is assured thanks to the 15FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

Driving the DAS 15FW4 loudspeaker is a cutting-edge 1200 Wpeak Class D amplifier. On the rear panel, quality Neutrik® XLR input connectors and stereo “loop thru” output connections are available to provide signal for the EVENT-26A systems. Thanks to the digital presets accessible by way of the DAScontrol™ interface on the rear of the cabinet, set-up of a complete systems is extremely easy.

The EVENT-115A cabinet is constructed from Birch plywood using a robust enclosure design and finished with the DAS ISO-flex protective coating for extended durability. The rigging hardware is compatible with the EVENT-26A allowing it to be flown directly below or stacked above the subwoofer unit. A top located pole mount socket is available allowing the EVENT-26A to be used in a combo configuration.

Features

Active front-loaded subwoofer system
1 x 15″ DAS 15FW4 loudspeaker
High-efficiency Class D amplifier with SMPS
Dual voltage mains for use anywhere in the world
Easy system configuration thanks to DAScontrolTM
High-end 24-bit DSP with LCD screen
EVENT-26A compatible rigging hardware

Applications

House of worship
Theatres, auditoria and performing arts centers
Live music clubs
Corporate A/V
Live sound touring/Rental services

Performance
Frequency Range (-10 dB)40 Hz – 125 Hz
Maximum Peak SPL at 1 m131 dB

Electronics and Connectors
Nominal Amplifier Power (continuous)600 W
Nominal Amplifier Power (peak)1200 W
Input TypeBalanced
Input Impeadance20 kohms
Input Sensitivity1.95 V (+8 dBu)
Audio Signal Input Connector2 x Female XLR
Audio Signal Loop Thru Connector2 x Male XLR
ControlDAScontrol™
AC Output ConnectorpowerCON NAC3MPB
Current Draw 230 V / 115 V1.4 A/2.8 A
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryRectangular
RiggingCaptive Rigging System
FinishISO-flex Paint
ColorBlack
Dimensions ( H x W x D )480 x 485 x 765 mm
18,9 x 19,1 x 30,3 in
Net Weight37,0 kg ( 81,5 lb )
Components
LF Driver15FW4
Shipping
Carton Dimensions ( H x W x D )530 x 550 x 860 mm
20,9 x 21,7 x 33,9 in
Shipping Weight40,5 kg ( 89,1 lb )
