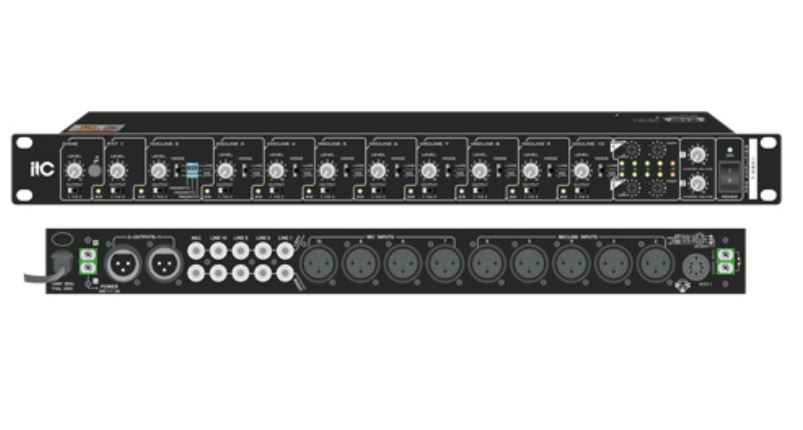

Stereo mixer pre-amp. 10 channel PreAmp

Manufacturer: ITC
Phantom power, alarm in, priority, rec out, Bass/Treble
  • 10 inputs with switchable mic/line and high pass filtering options.
  • Mic 1 offers highest input priority for paging functionality.
  • VOX selector on Mic 2-4 prioritizes over inputs 5-10 seamlessly.
  • Built-in chime features with remote and local trigger capabilities.
  • Comprehensive volume and tone controls for optimal audio customization.
SKU: T-2S01
Availability: In stock
$1,033.85 incl tax
i h

Stereo audio mixer with 10 inputs. The T-2S01 has loads of features, is very easy to install, has a 3 year factory guarantee and excellent audio quality.

  • Mic 1 has highest input priority and can be used as a paging mic input.
  • Mic 2-4 have VOX selector for priority over inputs 5-10 and phantom power, plus all 10 inputs are switchable mic / line and have high pass filtering selector.
  • Inputs 7-10 are either XLR mic inputs or dual RCA line inputs
  • Dual channel XLR line outputs
  • Built-in 2/4 tone pre-set chime, remote chime trigger and local trigger on front panel for paging and reception mic duties.
  • Volume controls are provided over chime,
  • MIC 1, inputs 2-10, channel 1 and channel 2 masters.
  • Bass and treble tone control are provided for both channel 1 and channel 2.
  • Indicators for input 1-10, power and 2 channel level meters
  • AC 230V and DC 24V operation

Stereo mixer with 10 inputs for paging and PA systems.

Model T-2S01

Input Sensitivity/Impedance

MIC/ Line ±2.45mV/5KO balanced, ±245mV)/5KO balanced Line RCA In 500mV/5KO unbalanced

Output Level/Impedance Master 1, 2 +4dBu/200O balanced

REC 0dBu/10KO unbalanced

Frequency Response -1dB(20Hz~20KHz)

S/N Ratio  MIC More than 60dB   Line More than 75dB

THD    MIC Less than 0.05% Line More than 0.03%

Separation  MIC More than 60dB Line More than 75dB

  • Power Consumption Power 13W
  • Power Supply ~230V/50Hz & DC 24V
  • Dimensions 484x295x44mm
  • Weight 3.9Kg
