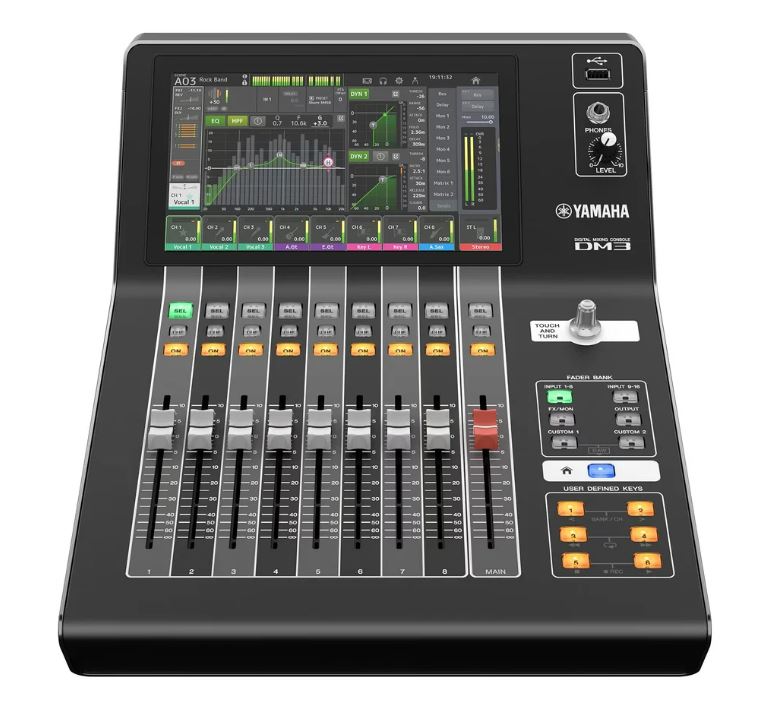

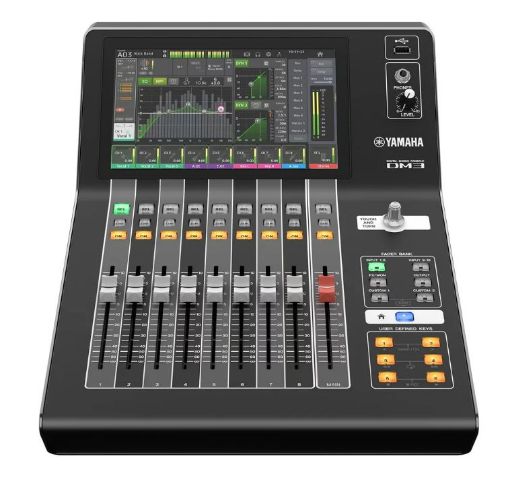

Yamaha DM3 22-channel Digital Mixer

Manufacturer: Yamaha
16 mono in +1 stereo + 2 FX return, 8 analogue out
  • Compact design ideal for various audio mixing applications and setups.
  • Features 8 + 1 fader configuration for versatile mixing capabilities.
  • 9-inch multi-touch screen for intuitive and user-friendly operation.
  • 16 mono and 1 stereo input channels ensure extensive connectivity options.
  • Supports USB connectivity with 18 inputs and outputs for flexibility.
SKU: DM3S
Availability: In stock
$3,680.00 incl tax
i h

The portable DM3 Standard compact digital mixing console features versatile capabilities that make it perfect for a wide range of applications. The DM3 Standard offers superb sound quality, fast and easy setup and operation, and professional-level features.

Features

  • 8 + 1 fader configuration
  • 9-inch multi-touch screen
  • Input mixing channels: 16 mono + 1 stereo + 2 FX return
  • Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
  • Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
  • USB: 18 inputs, and 18 outputs
  • 18 Effects, and GEQ on Mix 1-6 and Stereo channels
  • Sampling rate: 48kHz/96kHz
  • Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
  • Net weight: 14.3lbs

General specifications

  • I/O Connectors
    • Analog Input: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
    • Analog Output: 8 (XLR)
    • Dante: -
    • Network: 1 (RJ-45)
    • USB TO HOST: 1 (USB Type-B, USB2.0)
    • USB TO DEVICE: 1 (USB Type-A)
    • Phones: 1 (TRS Phones)
    • DC: 1 (XLR 4pin, DC power IN)
  • User Interface: 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder
  • Recording & Playback
    • PC/Mac: Recording 18 track, Playback 18 track
    • USB storage device: Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory)
  • Sampling frequency rate: 96 kHz / 48 kHz
  • Signal delay: Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz)
  • Frequency response: +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT
  • Total harmonic distortion: Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1
  • Hum & noise level
    • Equivalent input noise: -126 dBu typ., Input Gain= Max.
    • Residual output noise: -84 dBu, ST main off*2
  • Dynamic range: 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min.
  • Crosstalk: -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3
  • Power requirements: DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
  • Power consumption: 43 W
  • Dimensions
    • W: 320 mm (12.6")
    • H: 140 mm (5.6")
    • D: 455 mm (18.0")
  • Net weight: 6.5 kg (14.3 lb)
  • Included Accessories: Owner's Manual, Power Adapter, Download Information
  • Accessories: RK-DM3
  • Operating temperature: 0 - 40 °C
  • Storage temperature: -20 - 60 °C
