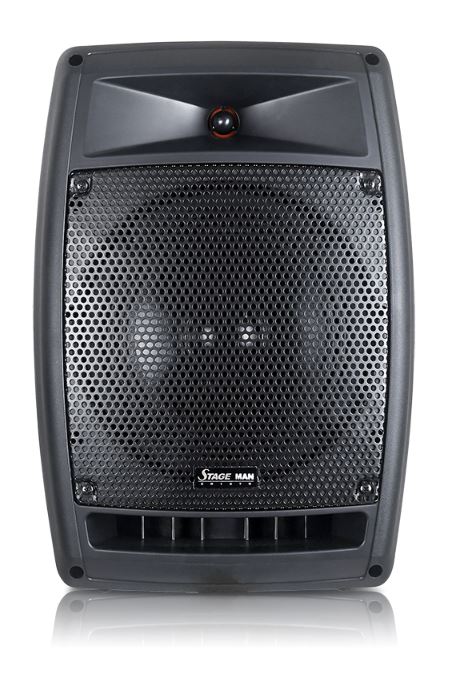

Portable Sound System / Stage Man PA Speaker

Manufacturer: Chiayo
1 review(s) | Add your review
Portable Sound System, Battery/Mains, modular options
  • Compact and lightweight design, weighing only 10.8kg for portability.
  • Powerful 100W RMS amplifier with 8" full range speaker included.
  • Two power modes: internal rechargeable battery and DC jack option.
  • User-friendly battery compartment for easy battery replacement and maintenance.
  • Versatile connectivity with Bluetooth, USB, SD player, and recorder module.
SKU: STAGE_MAN
Availability: In stock
$1,666.35 incl tax
i h

Stage Man multifunctional portable PA system with Extension Speaker output jack. Very similar to the Stage Pro but with a 100 watt RMS amplifier and an external speaker output with its own volume control for the second speaker.

The Chiayo Stage-Man is a compact, light weight (10.8kg) portable pa speaker that delivers 100Watts to an 8" full range speaker. It has two power modes, DC and internal rechargeable battery with up to 6 hours operating time. Available with Bluetooth MP3, USB, SD Player / Recorder Module, this PA System is  functional with many of options available to make it one of the most versatile PA Systems on the market.

Explore the Stage Man:

  • Includes Class-D digital power amplifier delivering 100W to the internal 8" full range speaker plus 100W to an external speaker on its own level control
  • 2 power modes: Internal Rechargeable battery & DC jack.
  • Up to 10 hours operating time per charge with lithium battery and 6 hours with Lead-Acid battery.
  • User friendly battery compartment design for simple battery replacement.
  • High efficiency system; compact cabinet and efficient 8" full range speaker for live performance.
  • Optional CD/USB/SD/Digital video player modules (including remote control) and a digital recorder/player module.
  • Up to 4 diversity receiver modules with 100/16 selectable frequencies in each system (optional).
  • Automatic Digital limiter with 1 LED indicator prevents output distortion.
  • 2-band equalizer, BASS/TREBLE and MASTER volume control.
  • AUX OUT (6.3mm jack) for external audio recording.
  • LINE IN (3.5mm jack) with individual volume control.
  • MICROPHONE 1 and 2 are XLR/6.3mm combo jack connectors for wired microphone inputs with individual volume control and a MIC/LINE level switch.
  • REVERB control for wired and wireless microphones
  • AUX OUT (6.3mm jack) and SPEAKER OUT (6.3mm jack) for external passive speakers.
  • Smart charging circuit with 4-step LED battery indicators and charging LED.
  • Tripod stand mountable with ST-50A

Chiayo Stage PA system

ModelStage Man
Output power150W, 100W(RMS) 4Ω load (class-D)
Speaker system8" full range
Audio inputMic in x2 (COMBO), Line in (3.5mm)
Audio outputAux out, External speaker
T.H.D.< 0.5%
Freq. response50Hz-20KHz±3dB
AntennaBuilt-in
Power supply100-240V AC / 30-32V DC, 4A
Battery typeLead-AcidLithium
Battery spec12V, 5Ah29.4V, 7.8Ah
Battery Q'ty21
Operating time5-6 hrs in music, >10 hrs in speech8-10hrs in music, >12 hrs in speech
Charging timeabout 6 hrsabout 8hrs
Dimension (mm)424(H) x 290(W) x 250(D)
Weight (kg)10.87.8
100-channel receiver moduleSDR-5200M IrDA,SDR-5100M IrDA
100-channel transmitter moduleRP-5100M
MP3 moduleDPR-500M
Bluetooth moduleBT-500m
MP3+Bluetooth moduleDPRB-600M
PatentTaiwan, China, USA, Germany
ApprovalCE,RoHS
** Remark: The above specifications are subject to change without prior notice.
